Removal [12/2013 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  2. REMOVE BACK DOOR FINISH PANEL COVER RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 11

  3. REMOVE GLASS HATCH OPENER SWITCH ASSEMBLY

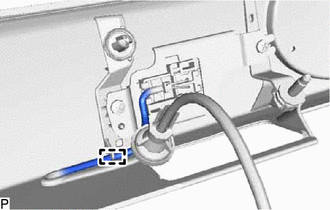

    1. Disengage the clamp.
      GTY423818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

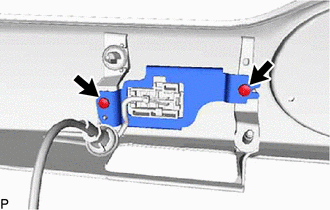

    2. Remove the 2 screws and No. 1 switch bracket.
      GTY427095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

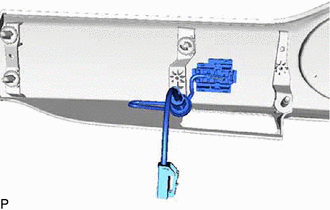

    3. Remove the glass hatch opener switch assembly.
      GTY451113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
