Components [12/2013 - ]: Illustration

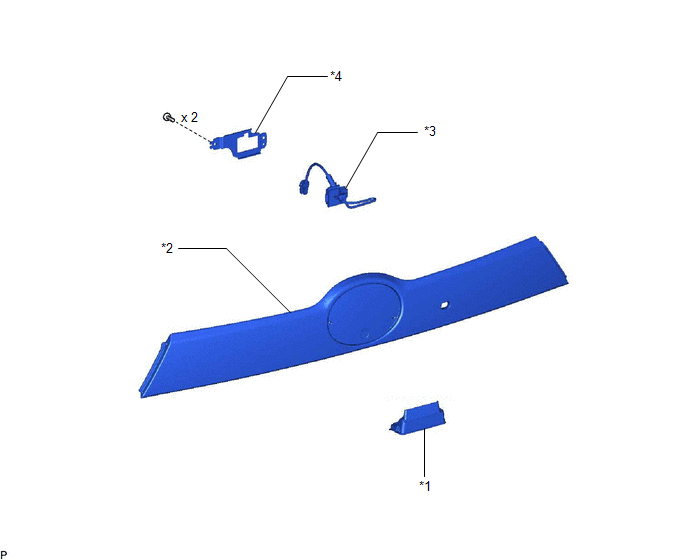

Fig 1: Glass Hatch Opener Switch Replacement Components
GTY442481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BACK DOOR FINISH PANEL COVER RH *2 BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
*3 GLASS HATCH OPENER SWITCH ASSEMBLY *4 NO. 1 SWITCH BRACKET
