Removal [12/2013 - ]: Procedure

  1. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 6 , or refer to PROCEDURE - Step 6

  2. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

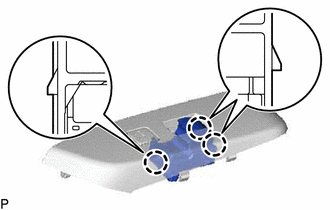

    1. Disengage the 3 claws to remove the power window regulator switch assembly.
      GTY427090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
