Components [12/2013 - ]: Illustration

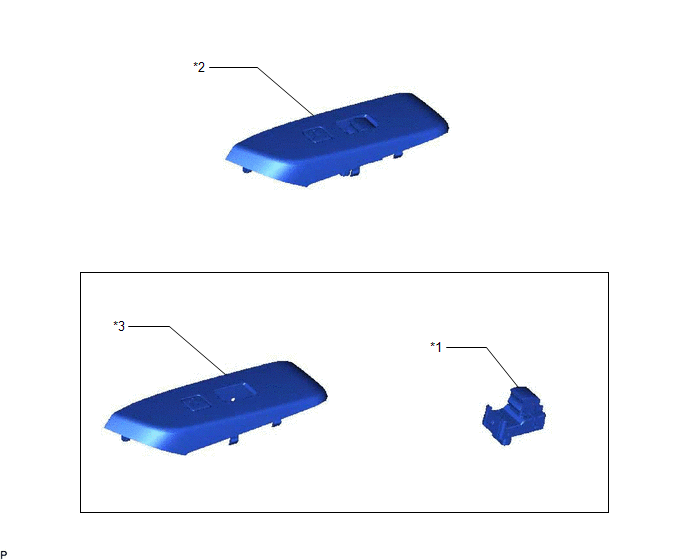

Fig 1: Front Passenger Side Power Window Switch Replacement Components
GTY424464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 POWER WINDOW REGULATOR SWITCH ASSEMBLY *2 POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
*3 FRONT DOOR UPPER ARMREST BASE PANEL - -
