Components [12/2013 - ]: Illustration

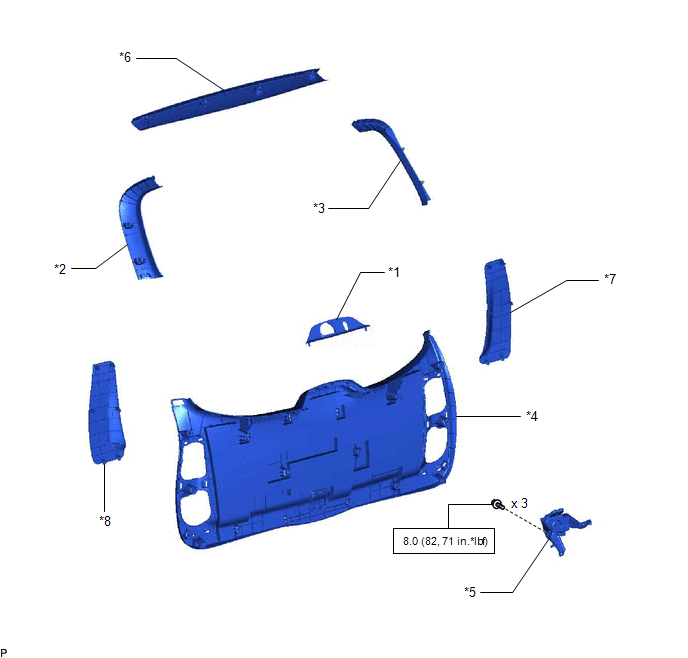

Fig 1: Back Window Lock Replacement Components With Torque Specifications
GTY426155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BACK DOOR LOCK COVER *2 BACK DOOR TRIM COVER LH
*3 BACK DOOR TRIM COVER RH *4 BACK DOOR TRIM PANEL ASSEMBLY
*5 BACK WINDOW LOCK ASSEMBLY *6 BACK WINDOW UPPER TRIM PANEL
*7 NO. 1 BACK DOOR SERVICE HOLE COVER *8 NO. 2 BACK DOOR SERVICE HOLE COVER
N*m (kgf*cm, ft.*lbf): Specified torque - -
