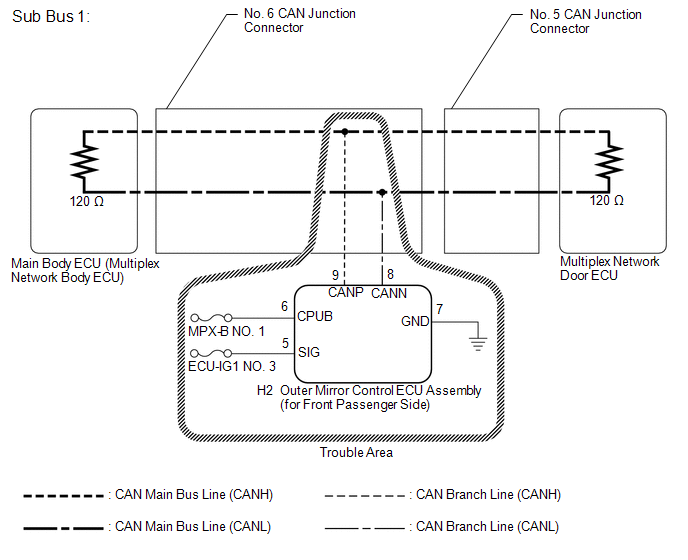

DTC U0199: Lost Communication with "Door Control Module A" [12/2013 - ]: Wiring Diagram

GTY442235

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
