System Diagram [12/2013 - 11/2016]

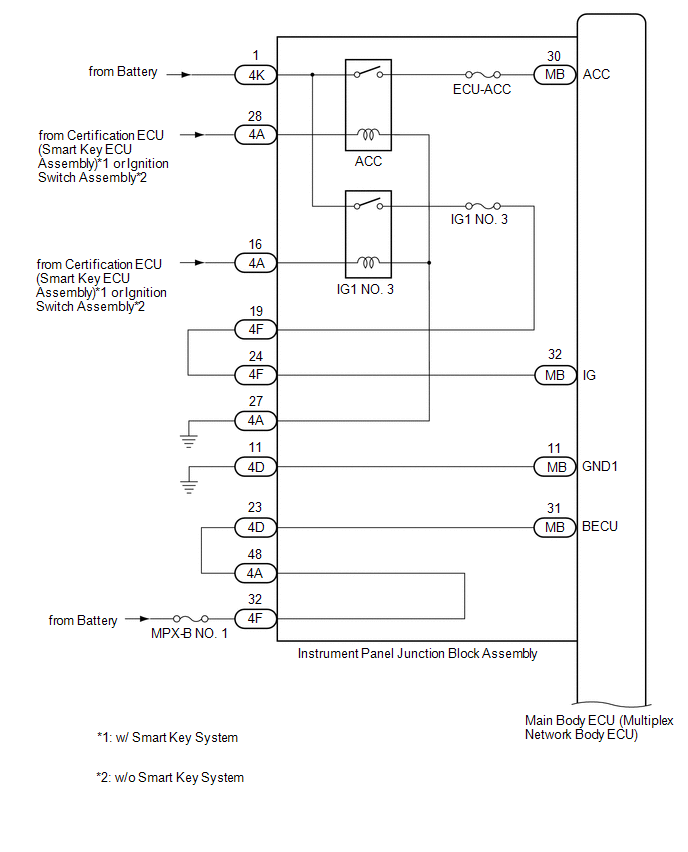

Fig 1: Lighting System Wiring Diagram (1 Of 8)

GTY453811

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

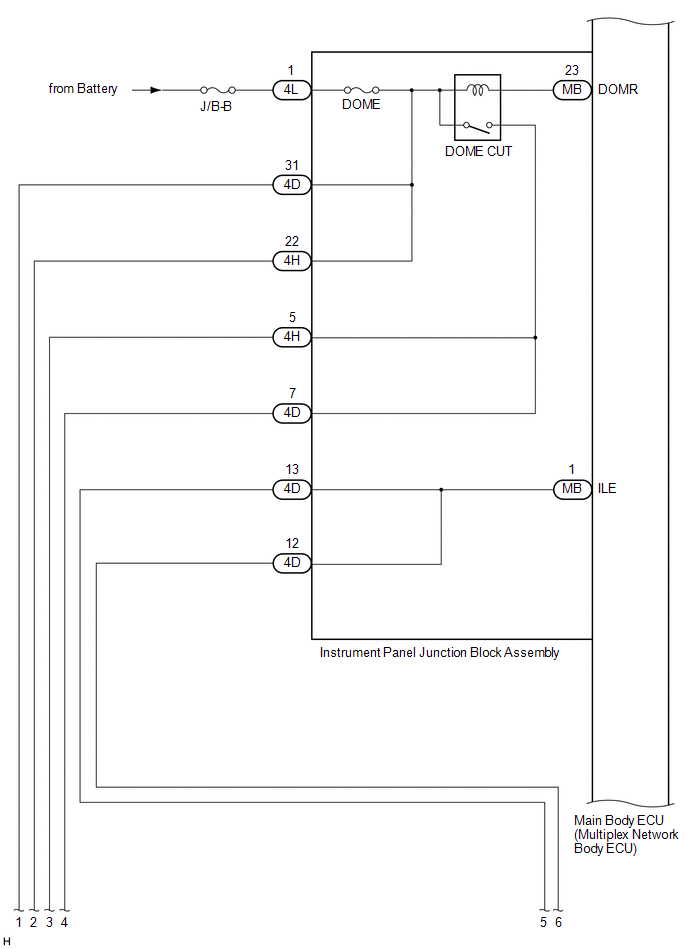

Fig 2: Lighting System Wiring Diagram (2 Of 8)

GTY439349

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

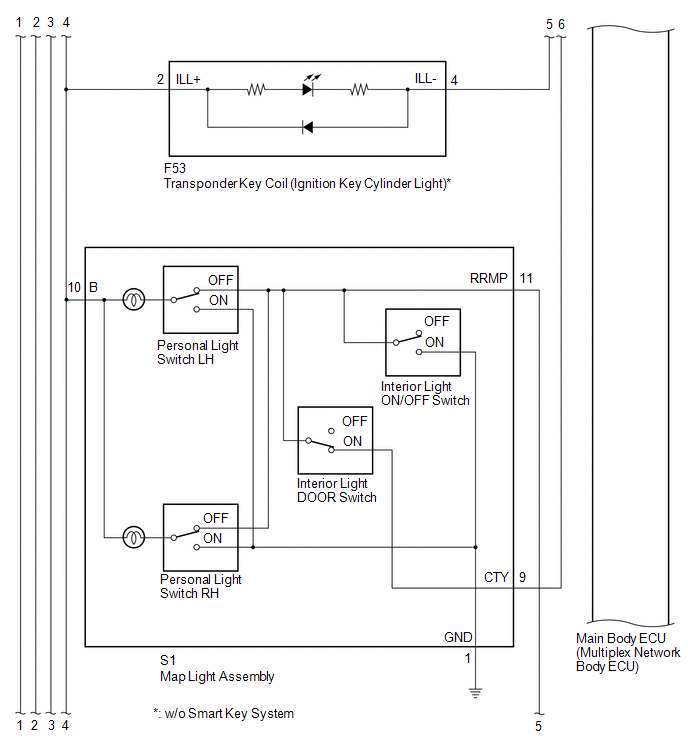

Fig 3: Lighting System Wiring Diagram (3 Of 8)

GTY434317

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

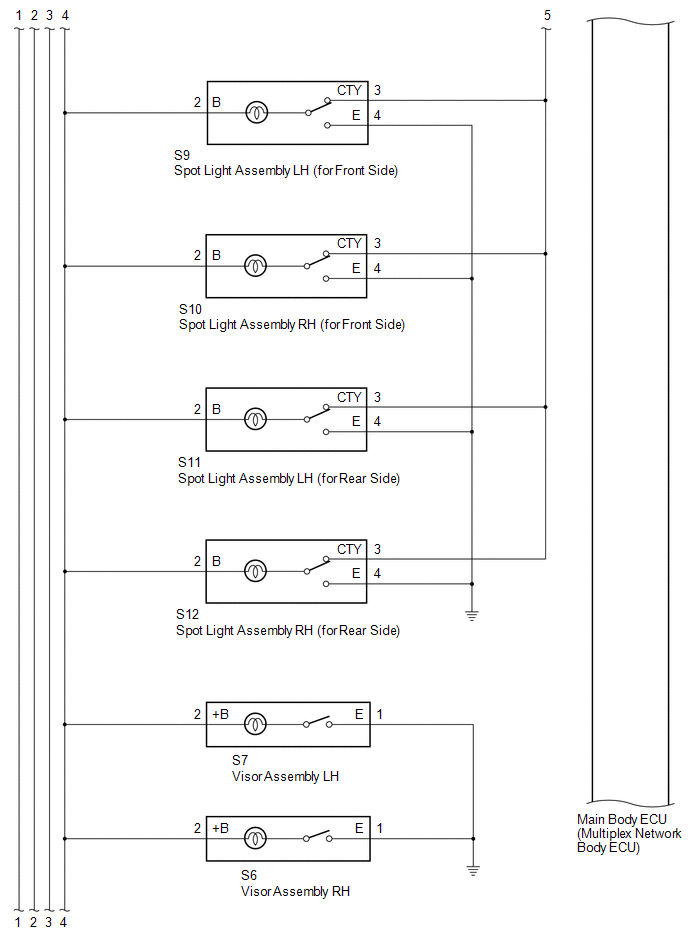

Fig 4: Lighting System Wiring Diagram (4 Of 8)

GTY441326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

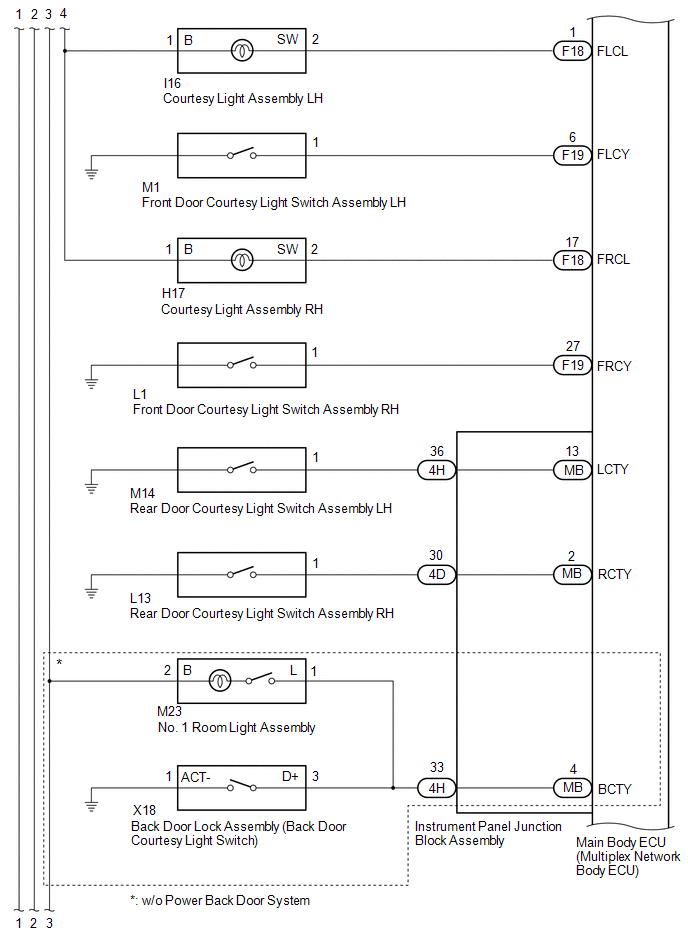

Fig 5: Lighting System Wiring Diagram (5 Of 8)

GTY443574

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

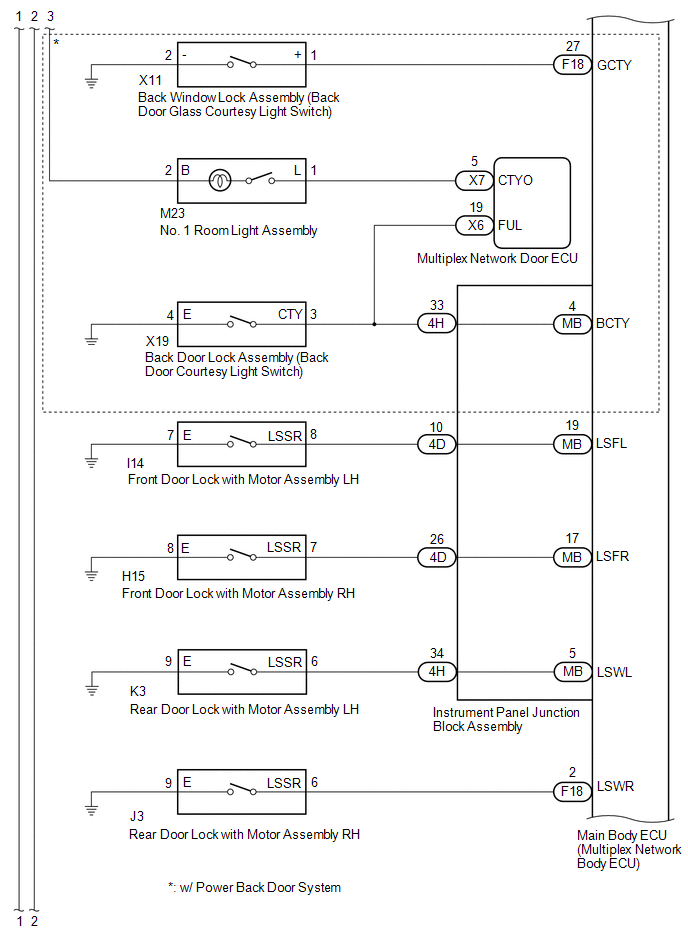

Fig 6: Lighting System Wiring Diagram (6 Of 8)

GTY428241

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

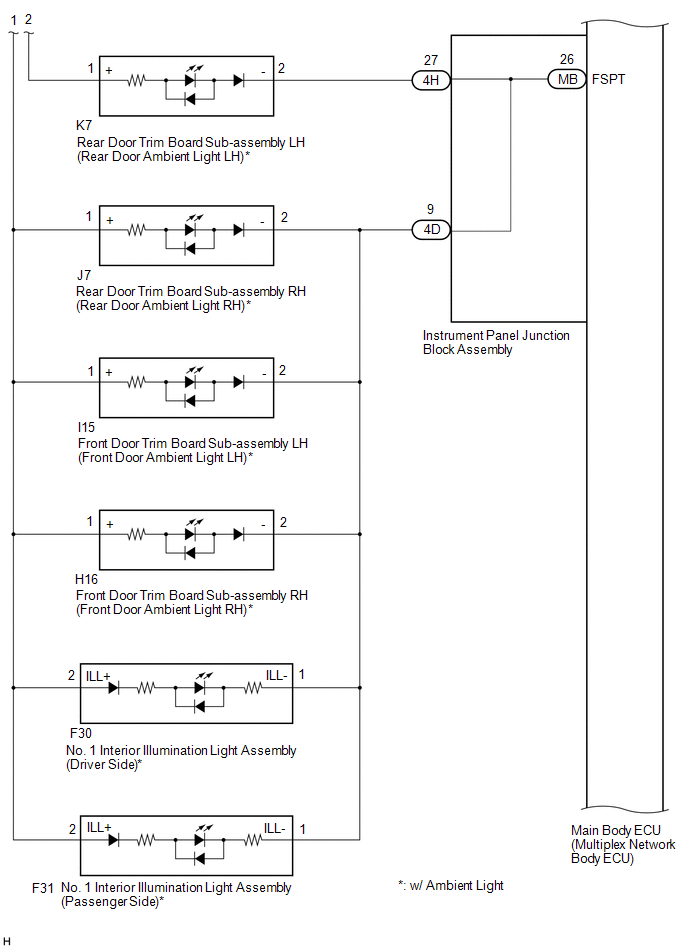

Fig 7: Lighting System Wiring Diagram (7 Of 8)

GTY716006

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

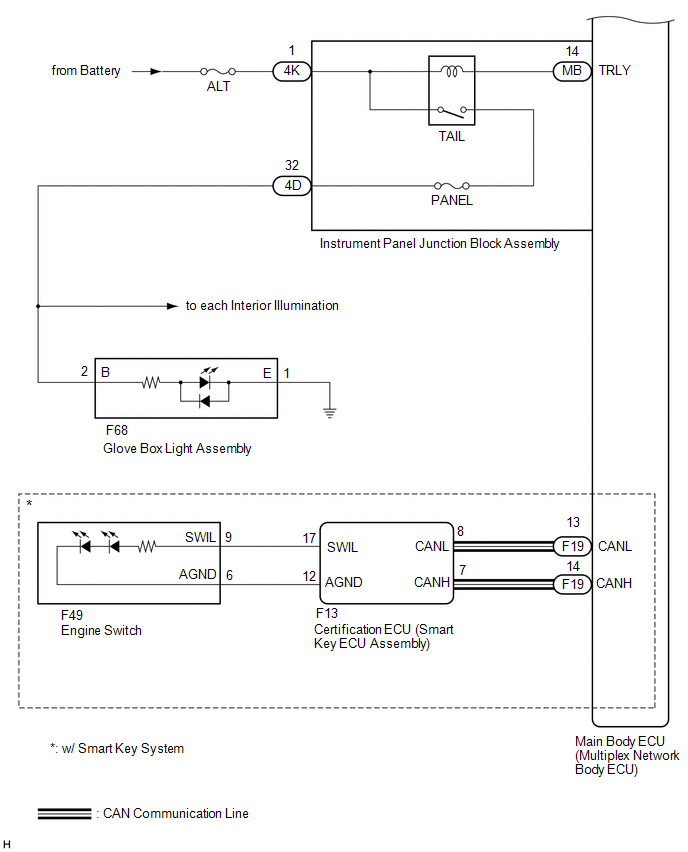

Fig 8: Lighting System Wiring Diagram (8 Of 8)

GTY449995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
