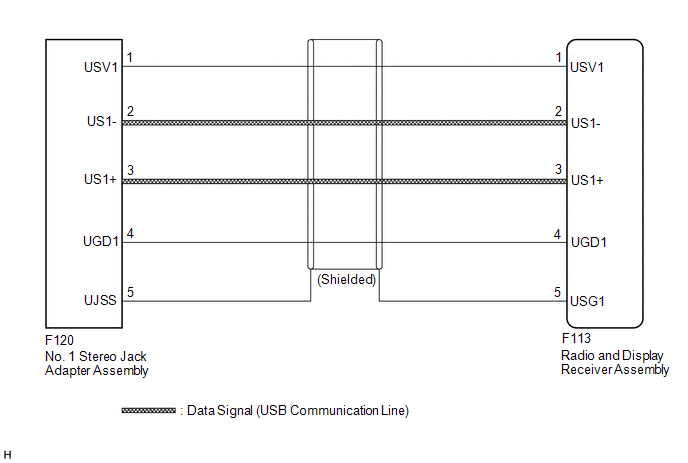

USB Audio System Recognition/Play Error [11/2016 - ]: Wiring Diagram

GTY724778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
