Highlander LE Plus, FWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
Garage Door Opener (Inspection & Registration) (Except Hybrid)
>>
Garage Door Opener System
>>
System Diagram [12/2013 - ]
>>
System Diagram [12/2013 - ]
System Diagram [12/2013 - ]

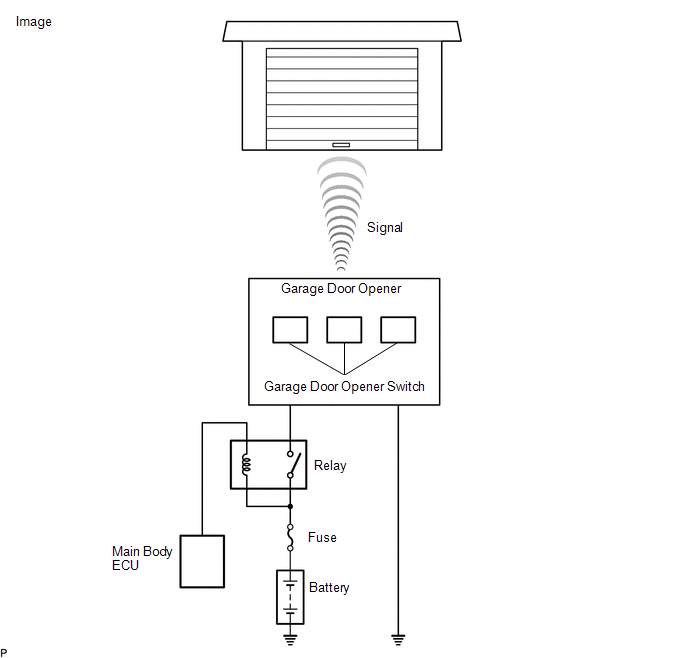

Fig 1: Garage Door Opener System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

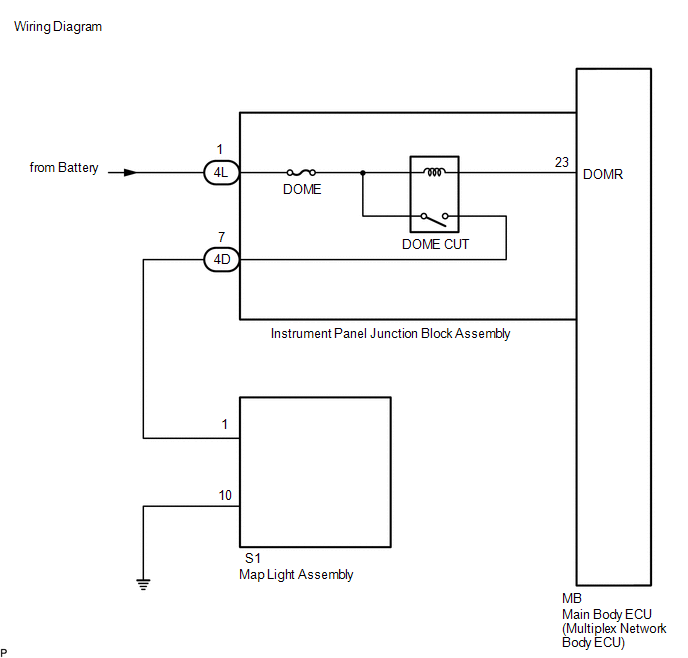

Fig 2: Garage Door Opener System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
