Components [01/2019 - 06/2021]

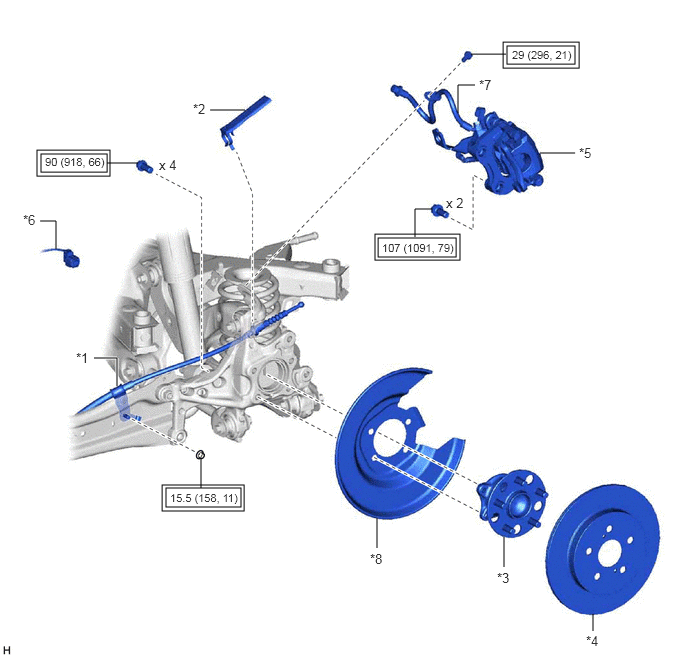

Fig 1: Rear Axle Carrier (For 2WD Without Electric Parking Brake System) Replacement Components With Torque Specifications [01/2019 - 06/2021] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 3 PARKING BRAKE CABLE ASSEMBLY | *2 | PARKING BRAKE LEVER PROTECTOR |
| *3 | REAR AXLE HUB AND BEARING ASSEMBLY | *4 | REAR DISC |
| *5 | REAR DISC BRAKE CALIPER ASSEMBLY | *6 | SKID CONTROL SENSOR WIRE |
| *7 | REAR FLEXIBLE HOSE | *8 | REAR DISC BRAKE DUST COVER SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

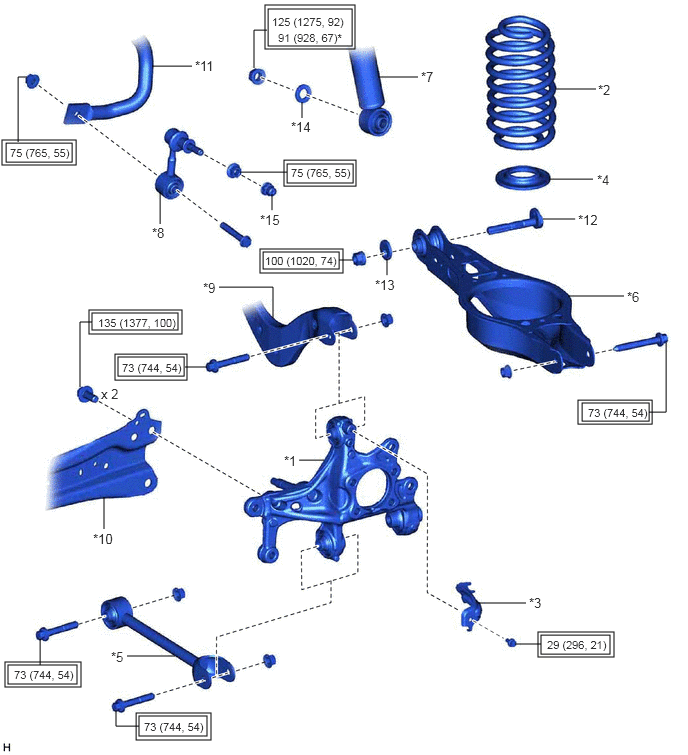

Fig 2: Rear Axle Carrier (For 2WD Without Electric Parking Brake System) Replacement Components With Torque Specifications [01/2019 - 06/2021] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR AXLE CARRIER SUB-ASSEMBLY | *2 | REAR COIL SPRING |
| *3 | REAR FLEXIBLE HOSE BRACKET | *4 | REAR LOWER COIL SPRING INSULATOR |
| *5 | REAR NO. 1 SUSPENSION ARM ASSEMBLY | *6 | REAR NO. 2 SUSPENSION ARM ASSEMBLY |
| *7 | REAR SHOCK ABSORBER ASSEMBLY | *8 | REAR STABILIZER LINK ASSEMBLY |
| *9 | REAR UPPER CONTROL ARM ASSEMBLY | *10 | REAR TRAILING ARM ASSEMBLY |
| *11 | REAR STABILIZER BAR | *12 | REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY |
| *13 | NO. 2 CAMBER ADJUST CAM | *14 | PLATE WASHER |
| *15 | CAP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a ball joint lock nut wrench |
