Components [08/2016 - ]: Illustration

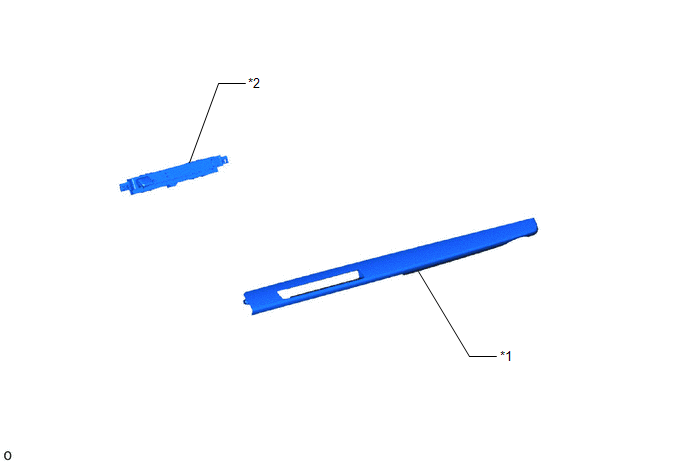

GTY702654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

*2

TELLTALE LIGHT ASSEMBLY (SEAT BELT WARNING LIGHT)
