Installation [12/2012 - 10/2015]: Procedure

  1. INSTALL REAR SEAT BELT RETRACTOR COVER LH
    1. Attach the claw to install the rear seat belt retractor cover LH.
  2. INSTALL REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH

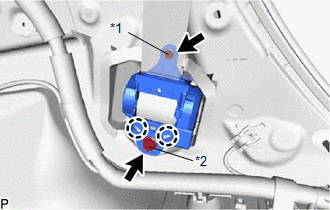

    1. Align the 2 claws with the seat belt positioning holes, and install the retractor of the rear No. 1 seat outer belt assembly LH with the 2 bolts as shown in the illustration.
      GTY384331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Bolt (A)
      *2 Bolt (B)

      for bolt A

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      for bolt B

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  3. INSTALL INNER ROOF SIDE GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 23

  4. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 26

  5. CONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH
    1. Connect the shoulder anchor of the rear No. 1 seat outer belt assembly LH with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    2. Check that the rear No. 1 seat outer belt assembly LH is not twisted.
    3. Connect the floor anchor of the rear No. 1 seat outer belt assembly LH with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    4. Check that the rear No. 1 seat outer belt assembly LH is not twisted.
  6. INSTALL SEAT BELT ANCHOR COVER CAP
    1. Attach the guide and 2 claws to install the seat belt anchor cover cap.
  7. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 28

  8. INSTALL REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 30

  9. INSTALL REAR SEAT ASSEMBLY LH

    Refer to INSTALLATION [12/2012 - 08/2016]

  10. INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE WITH REAR NO. 1 FLOOR BOARD
    1. for Compact Spare Tire:

      Refer to PROCEDURE - Step 37

    2. for Full Size Spare Tire:

      Refer to PROCEDURE - Step 37

  11. INSTALL REAR DECK TRIM COVER (for Full Size Spare Tire)

    Refer to PROCEDURE - Step 39

  12. INSTALL REAR FLOOR FINISH PLATE (for Compact Spare Tire)

    Refer to PROCEDURE - Step 38

  13. INSTALL DECK FLOOR BOX LH

    Refer to PROCEDURE - Step 40

  14. INSTALL DECK BOARD ASSEMBLY (for Full Size Spare Tire)

    Refer to PROCEDURE - Step 41

  15. INSTALL DECK BOARD ASSEMBLY (for Compact Spare Tire)

    Refer to PROCEDURE - Step 41

  16. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 42

  17. INSTALL PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/ Partition Net)

    Refer to PROCEDURE - Step 43
