Removal [12/2012 - 08/2016]: Procedure

  1. REMOVE REAR SEAT ASSEMBLY LH

    Refer to REMOVAL [12/2012 - 08/2016]

  2. REMOVE REAR CENTER SEAT LAP TYPE BELT ASSEMBLY LH

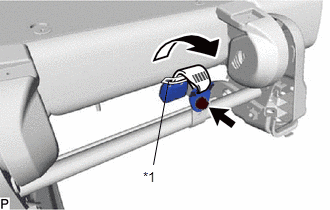

    1. Remove the bolt.
      GTY369463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rubber Band
    2. Pass the rear center seat lap type belt assembly LH through the rubber band of the separate type rear seat cushion cover, and then remove the rear center seat lap type belt assembly LH.
  3. REMOVE REAR SEAT INNER BELT ASSEMBLY RH

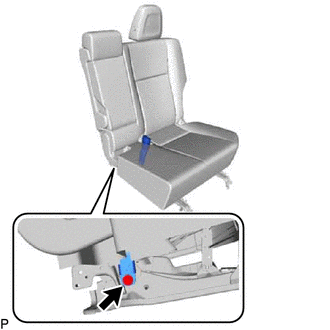

    1. Remove the bolt and rear seat inner belt assembly LH.
      GTY374898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR SEAT ASSEMBLY RH

    Refer to REMOVAL [12/2012 - 08/2016]

  5. REMOVE REAR CENTER SEAT LAP TYPE BELT ASSEMBLY RH

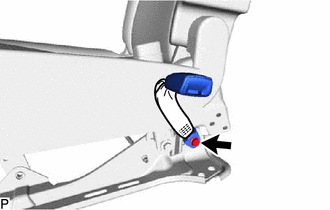

    1. Remove the bolt and rear center seat lap type belt assembly RH.
      GTY374793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR SEAT INNER BELT ASSEMBLY RH

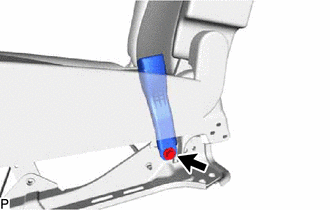

    1. Remove the bolt and rear seat inner belt assembly RH.
      GTY383402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
