Components [12/2012 - 08/2016]: Illustration

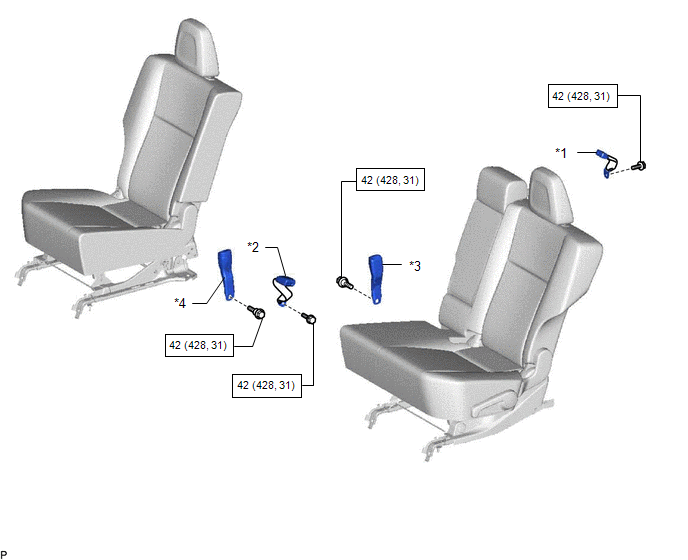

Fig 1: Rear Seat Inner Belt Assembly Components With Torque Specifications [12/2012 - 08/2016]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR CENTER SEAT LAP TYPE BELT ASSEMBLY LH	*2	REAR CENTER SEAT LAP TYPE BELT ASSEMBLY RH
*3	REAR SEAT INNER BELT ASSEMBLY LH	*4	REAR SEAT INNER BELT ASSEMBLY RH
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
