Removal [12/2012 - 08/2016]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY
    1. for Manual Seat:

      Refer to REMOVAL [12/2012 - 08/2016]

    2. for Power Seat:

      Refer to REMOVAL [12/2012 - ]

  2. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH
    1. Disconnect each connector and each clamp.

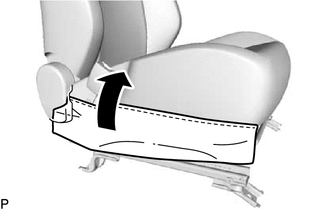

    2. Fold up the separate type front seat cushion cover.
      GTY374397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

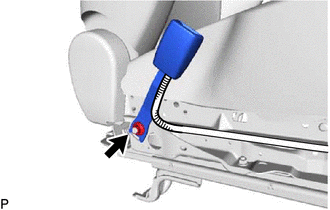

    3. Remove the nut and front seat inner belt assembly LH.
      GTY374396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH

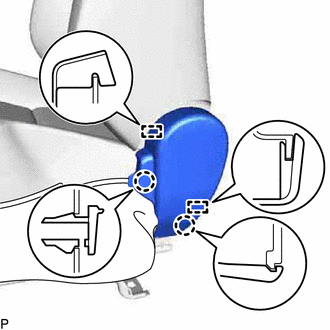

    1. Using moulding remover A, detach the 2 claws and 2 guides to remove the front seat cushion shield RH.
      GTY383341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector and each clamp.

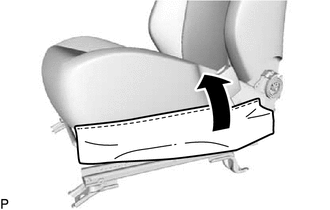

    3. Fold up the separate type front seat cushion cover.
      GTY377554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

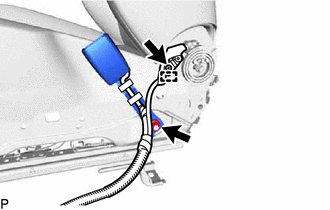

    4. for Type A:
      GTY383857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the screw.
      2. Detach the guide to remove the limit switch of the front seat inner belt assembly RH.
      3. Remove the nut and front seat inner belt assembly RH.

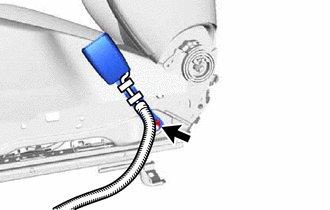

    5. for Type B:
      GTY595459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the nut and front seat inner belt assembly RH.
