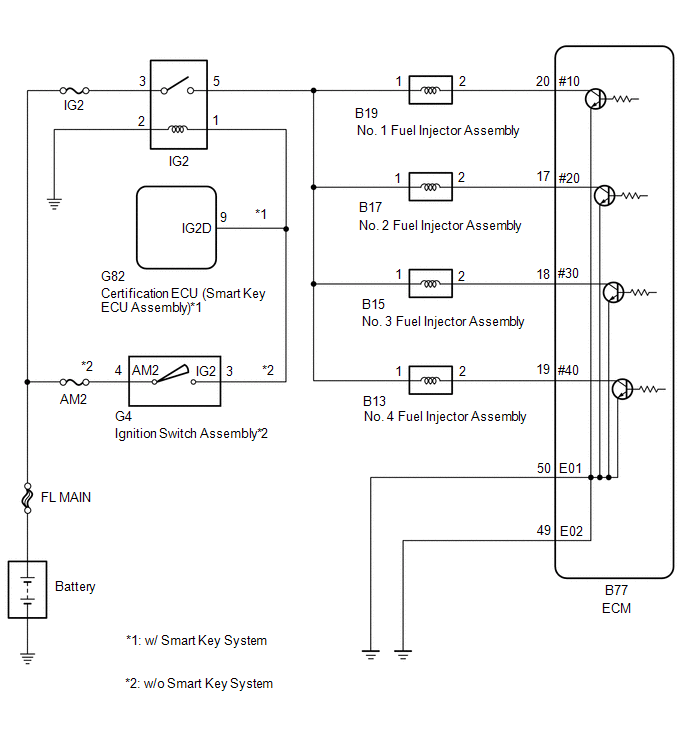

Fuel Injector Circuit [08/2017 - ]: Wiring Diagram

GTY761443

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
