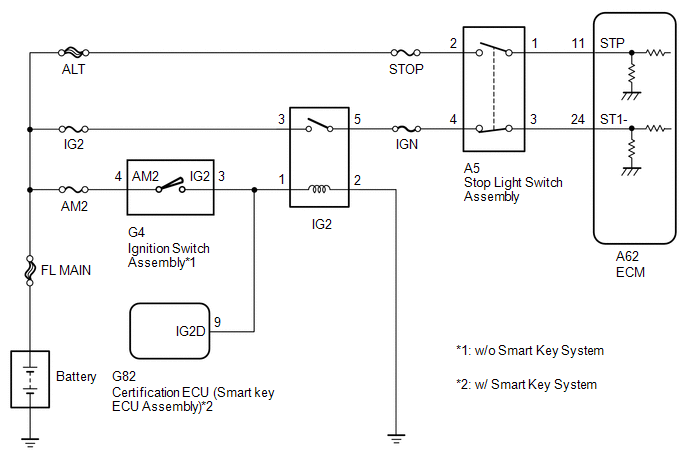

DTC P0504: Brake Switch "A" / "B" Correlation [12/2012 - 10/2015]: Wiring Diagram

GTY380373

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
