DTC P0451-P0453; Evaporative Emission Control System Pressure Sensor Range / Performance [12/2012 - ]: Procedure
- CONFIRM DTC AND EVAP PRESSURE
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON (do not start the engine).
- Turn the Techstream on.
- Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
Powertrain > Engine and ECT > Trouble Codes
- Read the DTCs.
- Enter the following menus: Powertrain / Engine and ECT / Data List / Gas Evaporative / Vapor Pressure Pump.
Powertrain > Engine and ECT > Data List
Tester Display Vapor Pressure Pump - Read the EVAP (Evaporative Emission) pressure displayed on the Techstream.
Result
Display (DTC Output) Test Result Suspected Trouble Area Proceed to P0451 - Canister pressure sensor
[When the vehicle has Evaporative System Check]C Canister pressure sensor
[When the vehicle does not have Evaporative System Check]D P0452 Less than 42.11 kPa(abs) [315.867 mmHg(abs)] - Wire harness/connector (ECM - canister pressure sensor)
- Canister pressure sensor
- Short in ECM circuit
A P0453 Higher than 123.761 kPa(abs) [928.331 mmHg(abs)] - Wire harness/connector (ECM - canister pressure sensor)
- Canister pressure sensor
- Open in ECM circuit
B
Result:
B
See step 8
Result:
C
GO TO EVAP SYSTEM: EVAP System [12/2012 - 10/2015] , EVAP System [10/2015 - ]
Result:
D
See step 9
Result:
A
See step 2
- CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)
- Disconnect the ECM connector.
- Measure the resistance according to the value(s) in the table below.
Result
Tester Connection Condition Specified Condition Suspected Trouble Area Proceed to A62-49 (PPMP) - Body ground Always Below 10 Ω - Wire harness/connector (ECM - canister pressure sensor)
- Short in canister pressure sensor circuit
A 10 kΩ or higher - Wire harness/connector (ECM - canister pressure sensor)
- Short in ECM circuit
B
Result:
B
See step 7
Result:
A
See step 3
- CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)
- Disconnect the canister pump module connector.
- Disconnect the ECM connector.
- Measure the resistance according to the value(s) in the table below.
Result
Tester Connection Condition Specified Condition Suspected Trouble Area Proceed to A62-49 (PPMP) - Body ground Always 10 kΩ or higher Short in canister pressure sensor circuit A Below 10 Ω Short in wire harness/connector (ECM - canister pressure sensor) B
Result:
B
See step 6
Result:
A
See step 4
- REPLACE CHARCOAL CANISTER LEAK DETECTION PUMP SUB-ASSEMBLY (CANISTER PUMP MODULE)
- Replace the charcoal canister leak detection pump sub-assembly.
Refer to REMOVAL [12/2012 - ]
NOTE:- When replacing the canister pump module, check the canister pump module interior, canister interior and related pipes for water, fuel and other liquids. If liquids are present, check for disconnections and/or cracks in the following: 1) the pipe from the air inlet port to the canister pump module; 2) the canister filter; and 3) the fuel tank vent hose. If liquids are present in the canister interior, replace the canister and canister pump module together.
- Check for filter blockage in the canister. If the charcoal filter inside the canister is clogged, replace the canister and canister pump module together.
- Check for filter blockage in the canister filter. If the canister filter has blockages, replace the canister filter.

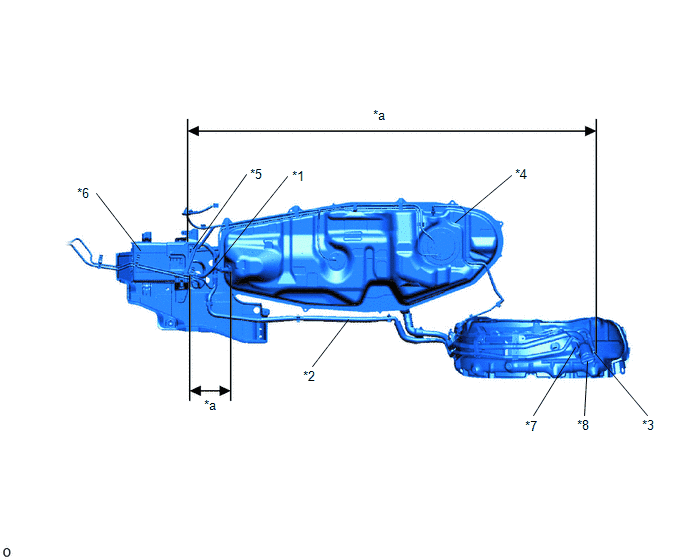

*1 Fuel Tank Vent Hose *2 Vent Hose *3 Air Inlet Port *4 Fuel Tank *5 Canister Pump Module *6 Canister Assembly *7 Fuel Tank Inlet Pipe Sub-assembly (Canister Filter) *8 Fuel Tank Cap Assembly *a Inspection Area
(check for disconnection and/or cracks)- -
Result:
NEXT
See step 5
- Replace the charcoal canister leak detection pump sub-assembly.
- CHECK WHETHER DTC OUTPUT RECURS (AFTER REPAIR)
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Clear the DTCs.
Refer to DTC CHECK / CLEAR [12/2012 - ]
Powertrain > Engine and ECT > Clear DTCs
- Turn the ignition switch off and wait for at least 30 seconds.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Perform the Evaporative System Check using the Techstream, referring to the Confirmation Driving Pattern.
- Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
Powertrain > Engine and ECT > Utility
Tester Display All Readiness - Input the DTC: P0452 or P0453.
- Check the DTC judgment result.
Result
Techstream Display Description NORMAL - DTC judgment completed
- System normal
ABNORMAL - DTC judgment completed
- System abnormal
INCOMPLETE - DTC judgment not completed
- Perform driving pattern after confirming DTC enabling conditions
N/A - Unable to perform DTC judgment
- Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit
Result:
NEXT
END
- REPAIR OR REPLACE HARNESS OR CONNECTOR (CANISTER PUMP MODULE - ECM)
HINT:
If the exhaust pipe has been removed, go to the next step before reinstalling it.
Result:
NEXT
See step 5
- REPLACE ECM
- Replace the ECM.
Refer to REMOVAL [12/2012 - ]
Result:
NEXT
See step 5
- Replace the ECM.
- CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)
- Disconnect the canister pump module connector.

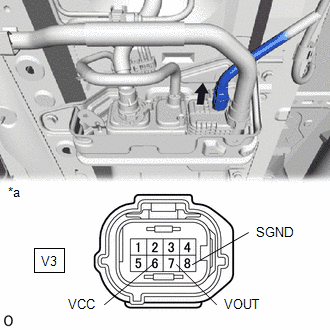

*a Front view of wire harness connector
(to Canister Pump Module) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition V3-8 (SGND) - Body ground Always 100 Ω or less - Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition V3-6 (VCC) - Body ground Ignition switch ON 4.5 to 5.5 V V3-7 (VOUT) - Body ground Ignition switch ON 4.5 to 5.5 V Result
Test Result Suspected Trouble Area Proceed to Voltage and resistance within standard ranges Open in canister pressure sensor circuit A Voltage and/or resistance outside standard ranges Open in wire harness/connector (ECM - canister pressure sensor) B
Result:
A
See step 4
Result:
B
See step 6
- Disconnect the canister pump module connector.
- CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)
- Disconnect the canister pump module connector.
- Disconnect the ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition V3-3 (MTRB) - A62-19 (MPMP) Always Below 1 Ω V3-4 (MGND) - Body ground Always Below 1 Ω V3-6 (VCC) - A62-34 (VCPP) Always Below 1 Ω V3-7 (VOUT) - A62-49 (PPMP) Always Below 1 Ω V3-8 (SGND) - A62-48 (EPPM) Always Below 1 Ω V3-3 (MTRB) or A62-19 (MPMP) - Body ground Always 10 kΩ or higher V3-6 (VCC) or A62-34 (VCPP) - Body ground Always 10 kΩ or higher V3-7 (VOUT) or A62-49 (PPMP) - Body ground Always 10 kΩ or higher V3-8 (SGND) or A62-48 (EPPM) - Body ground Always 10 kΩ or higher
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 10
- REPLACE CHARCOAL CANISTER LEAK DETECTION PUMP SUB-ASSEMBLY (CANISTER PUMP MODULE)
- Replace the charcoal canister leak detection pump sub-assembly.
Refer to REMOVAL [12/2012 - ]
NOTE:- When replacing the canister pump module, check the canister pump module interior, canister interior and related pipes for water, fuel and other liquids. If liquids are present, check for disconnections and/or cracks in the following: 1) the pipe from the air inlet port to the canister pump module; 2) the canister filter; and 3) the fuel tank vent hose. If liquids are present in the canister interior, replace the canister and canister pump module together.
- Check for filter blockage in the canister. If the charcoal filter inside the canister is clogged, replace the canister and canister pump module together.
- Check for filter blockage in the canister filter. If the canister filter has blockages, replace the canister filter.
*1 Fuel Tank Vent Hose *2 Vent Hose *3 Air Inlet Port *4 Fuel Tank *5 Canister Pump Module *6 Canister Assembly *7 Fuel Tank Inlet Pipe Sub-assembly (Canister Filter) *8 Fuel Tank Cap Assembly *a Inspection Area (check for disconnection and/or cracks) - -
Result:
NEXT
See step 11
- Replace the charcoal canister leak detection pump sub-assembly.
- CHECK WHETHER DTC OUTPUT RECURS (AFTER REPAIR)
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Clear the DTCs.
Refer to DTC CHECK / CLEAR [12/2012 - ]
Powertrain > Engine and ECT > Clear DTCs
- Turn the ignition switch off and wait for at least 30 seconds.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Start the engine and warm it up.
- Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
- Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
- Read the DTCs.
Powertrain > Engine and ECT > Trouble Codes
Result
Result Proceed to No DTC is output A P0451 is output B
Result:
A
END
Result:
B
REPLACE ECM: REMOVAL [12/2012 - ]
