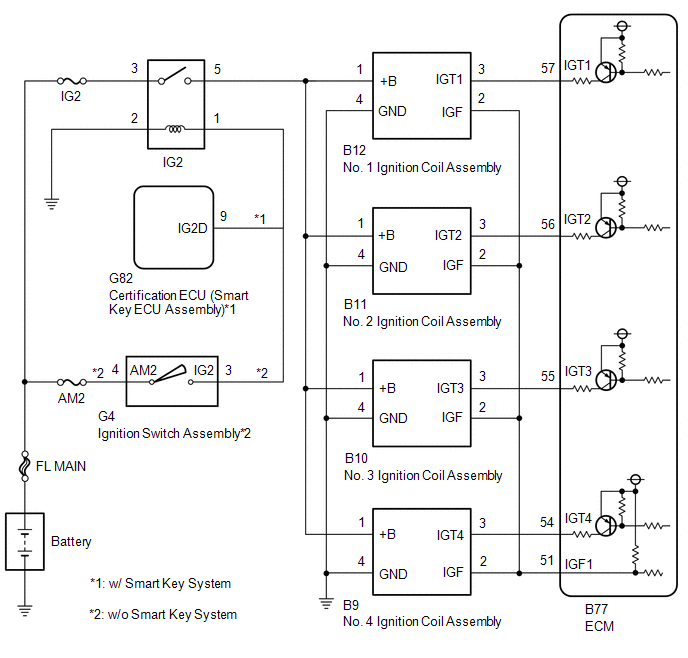

DTC P0351-P0354; Ignition Coil "A" Primary / Secondary Circuit [12/2012 - 10/2015]: Wiring Diagram

GTY375661

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
