DTC P0724: Brake Switch "B" Circuit High [10/2015 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / Primary / Stop Light Switch.

   Powertrain > Engine and ECT > Data List

   Tester Display
   Stop Light Switch

5. Read the values displayed on the Techstream.

   OK

   Techstream Display	Measurement Item/Range (display)	Normal Condition
   Stop Light Switch	Stop light switch status: ON or OFF	ON: Brake pedal depressed OFF: Brake pedal released

   Result

   Proceed to
   OK
   NG

Result:

OK

CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [12/2012 - ]

Result:

NG

See step  2

1. Check the stop light switch installation.

   Refer to ADJUSTMENT [12/2012 - ]

   OK

   Stop light switch is installed correctly.

   Result

   Proceed to
   OK
   NG

Result:

NG

SECURELY REINSTALL STOP LIGHT SWITCH ASSEMBLY. Refer to  INSTALLATION [12/2012 - ]

Result:

OK

See step  3

1. Inspect the stop light switch assembly.
   • for Bulb Type Stop Light

     Refer to INSPECTION [10/2015 - ]

   • for LED Type Stop Light

     Refer to ON-VEHICLE INSPECTION [10/2015 - ]

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE STOP LIGHT SWITCH ASSEMBLY. Refer to  REMOVAL [12/2012 - ]

Result:

OK

See step  4

1. Disconnect the ECM connector.

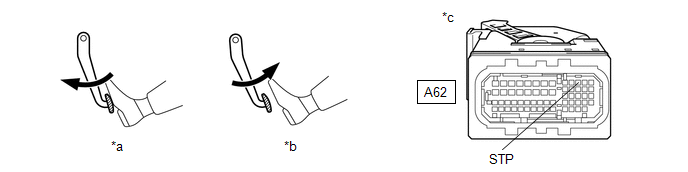

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   *a	Brake pedal depressed	*b	Brake pedal released
   *c	Front view of wire harness connector (to ECM)	-	-

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A62-11 (STP) - Body ground	Brake pedal released	Below 1.5 V
   	Brake pedal depressed	7.5 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE ECM. Refer to  REMOVAL [12/2012 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - ECM)
