SFI System [2AR-FE] (Diagnostic Codes) (Except Hybrid) (4 Of 7)
>>
SFI System
>>
DTC P0617: Starter Relay Circuit High [10/2015 - 08/2017]
>>

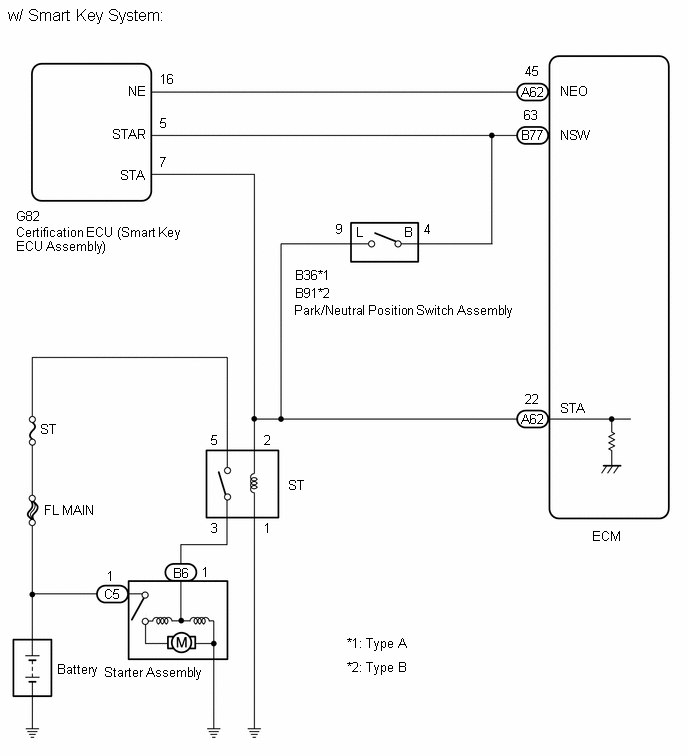

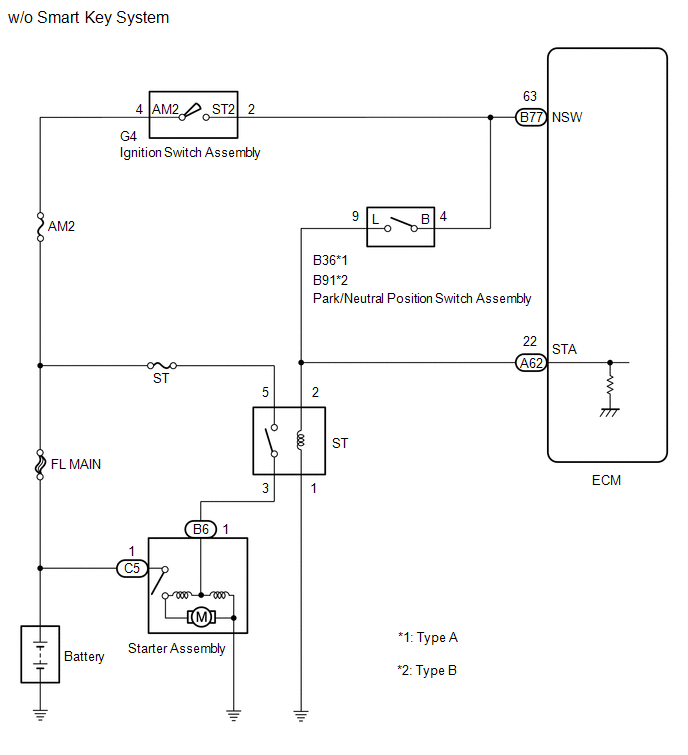

Wiring Diagram
DTC P0617: Starter Relay Circuit High [10/2015 - 08/2017]: Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
