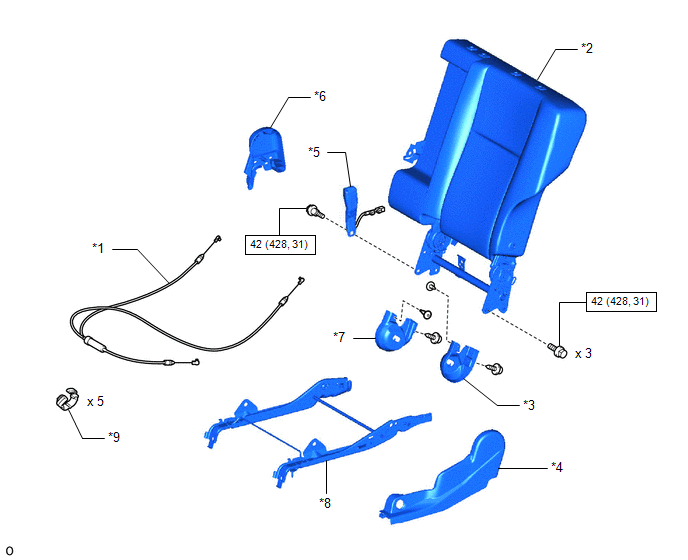

Components [08/2016 - 08/2017]: Illustration

Fig 1: Rear Seat Assembly (For LH Side) Components With Torque Specifications [08/2016 - 08/2017] (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR SEAT NO. 3 LEG SIDE COVER	*2	REAR SEAT ASSEMBLY LH
*3	REAR SEAT FRONT BRACKET COVER LH	*4	SEAT LEG BRACKET
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

Fig 1: Rear Seat Assembly (For LH Side) Components With Torque Specifications [08/2016 - 08/2017] (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CENTER ARMREST HINGE COVER RH	*2	REAR CENTER SEAT LAP TYPE BELT ASSEMBLY LH
*3	REAR SEAT NO. 1 CENTER ARMREST PLATE	*4	REAR SEAT CENTER ARMREST ASSEMBLY
*5	REAR SEAT CENTER HEADREST ASSEMBLY	*6	REAR SEAT HEADREST ASSEMBLY
*7	REAR SEATBACK NO. 1 BOARD CAP	*8	RECLINING ADJUSTER RELEASE HANDLE LH
*9	WASHER	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

Fig 1: Rear Seat Assembly (For LH Side) Components With Torque Specifications [08/2016 - 08/2017] (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR NO. 1 SEAT CUSHION ASSEMBLY LH	*2	REAR SEAT LOWER CUSHION HINGE COVER LH
*3	REAR SEAT NO. 3 CUSHION HINGE COVER	*4	REAR SEATBACK COVER
*5	BUSH	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

Fig 1: Rear Seat Assembly (For LH Side) Components With Torque Specifications [08/2016 - 08/2017] (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 SEAT ADJUSTER CONTROL CABLE ASSEMBLY	*2	REAR NO. 1 SEATBACK ASSEMBLY LH
*3	REAR SEAT COVER LH	*4	REAR SEAT CUSHION MOULDING LH
*5	REAR SEAT INNER BELT ASSEMBLY LH	*6	REAR SEAT REAR CUSHION MOULDING LH
*7	REAR SEATBACK COVER LH	*8	REAR SEAT RECLINING ADJUSTER ASSEMBLY LH
*9	CLAMP	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

Fig 1: Rear Seat Assembly (For LH Side) Components [08/2016 - 08/2017] (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	SEPARATE TYPE REAR SEAT CUSHION COVER	*2	REAR SEAT CUSHION PAD LH
*3	REAR SEAT SPRING ASSEMBLY LH	*4	HOG RING
•	Non-reusable part	-	-

Fig 1: Rear Seat Assembly (For LH Side) Components [08/2016 - 08/2017] (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR SEATBACK BOARD LH	*2	SEPARATE TYPE REAR SEATBACK COVER
*3	SEPARATE TYPE REAR SEATBACK PAD	*4	REAR SEAT HEADREST SUPPORT
*5	REAR SEATBACK FRAME SUB-ASSEMBLY LH	*6	HOG RING
•	Non-reusable part	-	-
