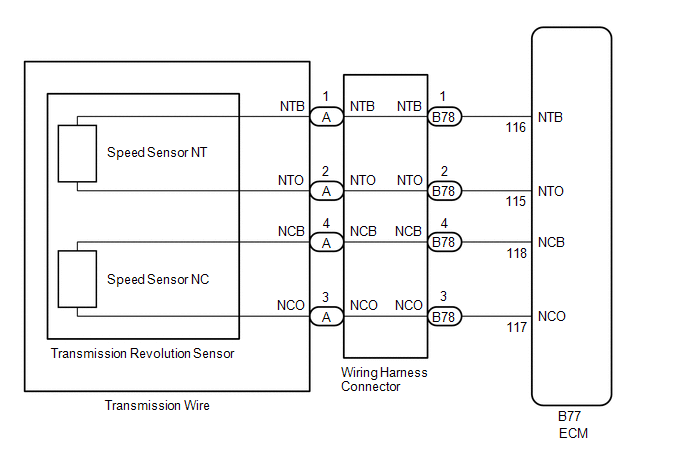

DTC P0717, P07BF, P07C0; Input Speed Sensor Circuit No Signal [10/2015 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY372827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
