DTC P0717, P07BF, P07C0; Input Speed Sensor Circuit No Signal [10/2015 - ]: Procedure

1. Remove the transmission valve body assembly.

   Refer to REMOVAL [12/2012 - ]

2. Make sure that the connector is properly connected, and check the transmission revolution sensor installation.

   OK

   The installation bolt is tightened properly and there is no clearance between the sensor and transaxle case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Result:

NG

SECURELY INSTALL OR REPLACE TRANSMISSION REVOLUTION SENSOR:  REMOVAL [12/2012 - ]

Result:

OK

See step  2

1. Disconnect the transmission revolution sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Transmission Wire
   *a	Transmission Revolution Sensor Side
   *b	Wiring Harness Connector Side

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   NTB transmission revolution sensor side - A-1 (NTB) wiring harness connector side	Always	Below 1 Ω
   NTO transmission revolution sensor side - A-2 (NTO) wiring harness connector side	Always	Below 1 Ω
   NTB transmission revolution sensor side or A-1 (NTB) wiring harness connector side - Body ground and other terminals	Always	10 kΩ or higher
   NTO transmission revolution sensor side or A-2 (NTO) wiring harness connector side - Body ground and other terminals	Always	10 kΩ or higher

Result:

NG

REPLACE TRANSMISSION WIRE:  REMOVAL [12/2012 - ]

Result:

OK

See step  3

1. Disconnect the B78 wiring harness connector.
2. Disconnect the B77 ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   B78-1 (NTB) - B77-116 (NTB)	Always	Below 1 Ω
   B78-2 (NTO) - B77-115 (NTO)	Always	Below 1 Ω
   B78-1 (NTB) or B77-116 (NTB) - Body ground and other terminals	Always	10 kΩ or higher
   B78-2 (NTO) or B77-115 (NTO) - Body ground and other terminals	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

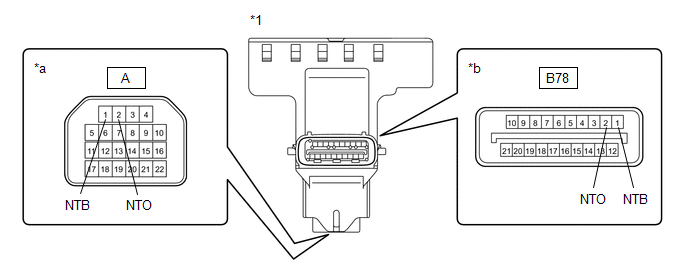

1. Remove the wiring harness connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Wiring Harness Connector	-	-
   *a	Transmission Wire Side	*b	ECM Side

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A-1 (NTB) - B78-1 (NTB)	Always	Below 1 Ω
   A-2 (NTO) - B78-2 (NTO)	Always	Below 1 Ω
   A-1 (NTB) - All other terminals except B78-1 (NTB)	Always	10 kΩ or higher
   A-2 (NTO) - All other terminals except B78-2 (NTO)	Always	10 kΩ or higher

Result:

NG

REPLACE WIRING HARNESS CONNECTOR:  REMOVAL [12/2012 - 08/2017]  ,  REMOVAL [08/2017 - ]

Result:

OK

See step  5

1. Replace the transmission revolution sensor.

   Refer to REMOVAL [12/2012 - ]

Result:

NEXT

See step  6

1. Connect the Techstream to the DLC3.
2. Start the engine and turn the Techstream on.
3. Clear the DTCs.

   Refer to DTC CHECK / CLEAR [12/2012 - ]

   HINT:

   Write down the currently output DTCs before clearing them.

   Powertrain > Engine and ECT > Clear DTCs

4. Perform the monitor drive pattern.

   Refer to MONITOR DRIVE PATTERN [12/2012 - ]

5. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

   Powertrain > Engine and ECT > Trouble Codes

6. Read the DTCs using the Techstream.

   Result

   Result	Proceed to
   Only P0717, P07BF or P07C0 is output	A
   DTCs are not output	B

Result:

A

REPLACE ECM:  REMOVAL [12/2012 - ]

Result:

B

END
