Section 4 (Automatic Transmission (U760E) - Diagnostic Codes & Circuit Tests)
>>
Automatic Transaxle System
>>
DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input) [10/2015 - 08/2017]
>>

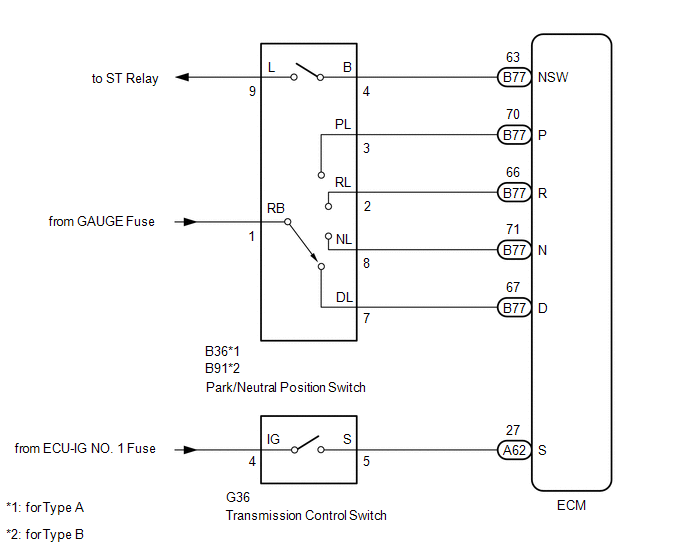

Wiring Diagram
DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input) [10/2015 - 08/2017]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
