System Diagram [10/2015 - ]

WARNING: This page is about a different variant/trim than selected.

The configuration of the electronic control system in the U760E automatic transaxle is as shown in the following chart.

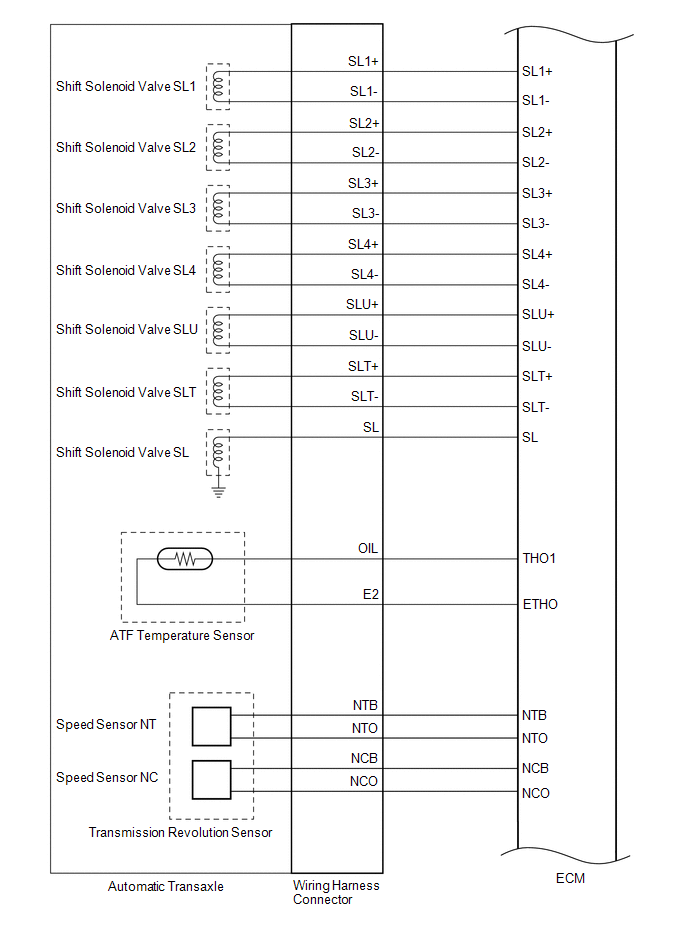

Fig 1: Identifying Automatic Transaxle System Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

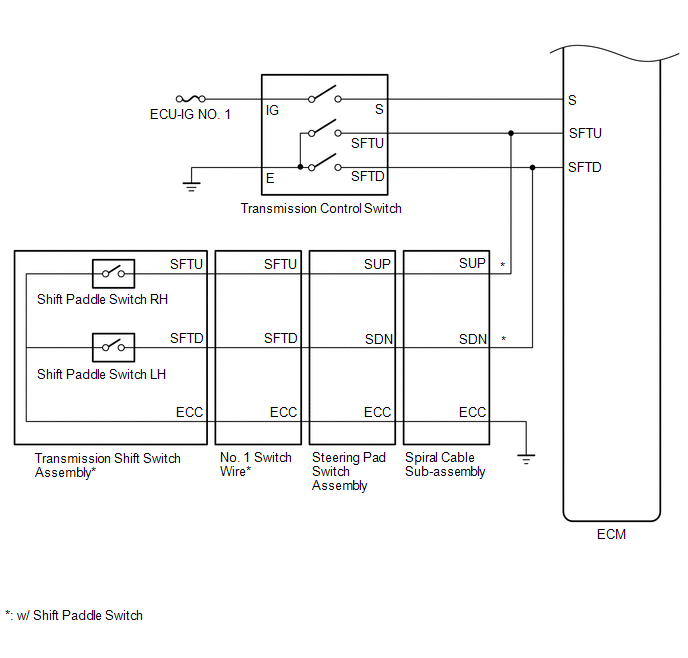

Fig 2: Identifying Automatic Transaxle System Wiring Diagram (2 Of 3)

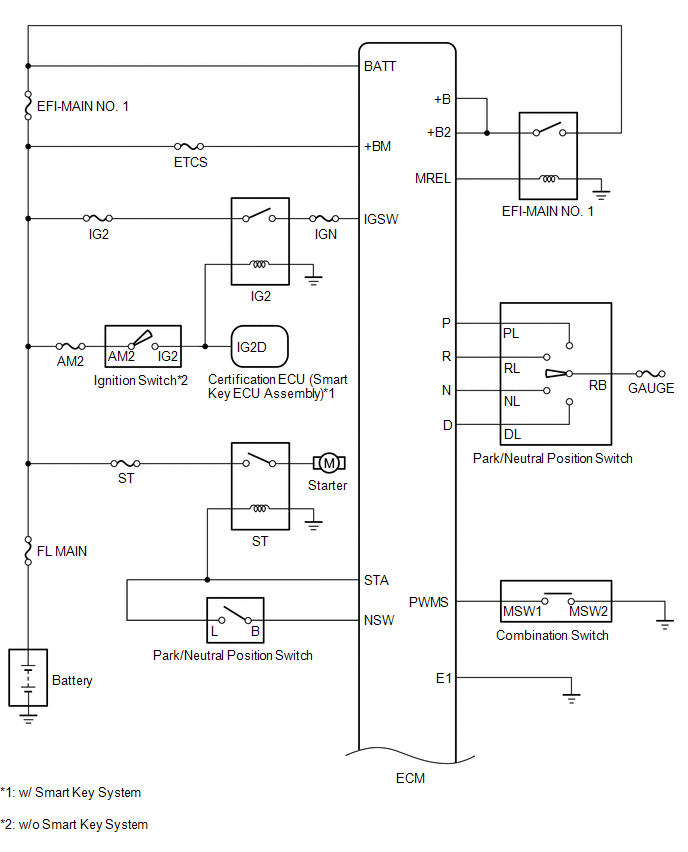

Fig 3: Identifying Automatic Transaxle System Wiring Diagram (3 Of 3)
