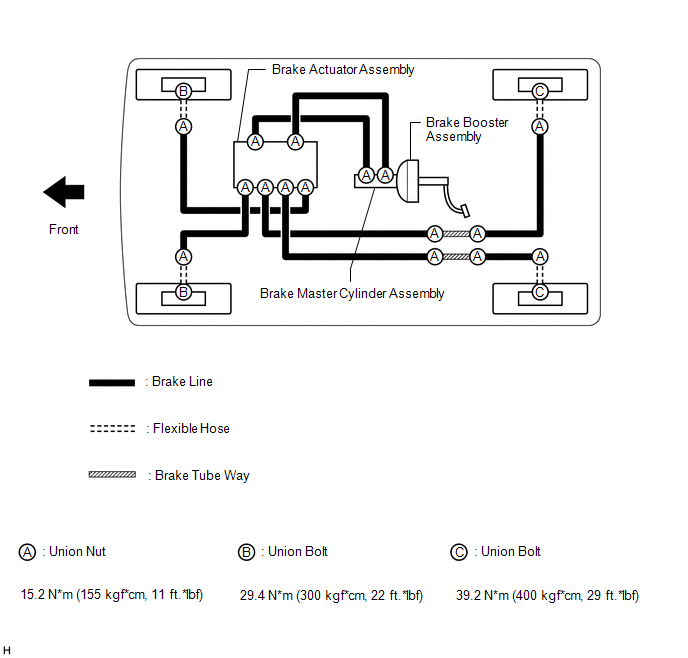

Home >> Toyota >> 2018 >> RAV4 LE, FWD >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brake System (Hydraulic) (Service Information) (Except Hybrid) >> Brake Line >> System Diagram [12/2012 - ] >> System Diagram [12/2012 - ]
