Replacement [12/2012 - ]: Procedure
- DRAIN TRANSFER OIL
- Stop the vehicle on a level surface.
- Using a 10 mm straight hexagon wrench and 10 x 12 mm long offset wrench, remove the No. 2 transfer case plug (for filler) and gasket.

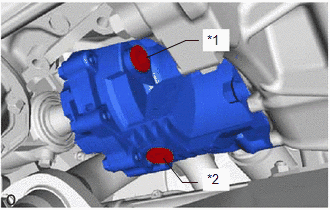

*1 No. 2 Transfer Case Plug (for filler) *2 Transfer Drain Plug - Using a 10 mm hexagon socket wrench, remove the transfer drain plug and gasket and drain the transfer oil.
- Using a 10 mm hexagon socket wrench, install a new gasket and the drain plug.
Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)
- ADD TRANSFER OIL
- Using a 10 mm straight hexagon wrench and 10 x 12 mm long offset wrench, remove the No. 2 transfer case plug (for filler) and gasket.
- Add transfer oil.
Oil grade
Toyota Genuine Differential gear oil LT API GL-5 or equivalent
Viscosity
SAE 75W-85
- Pour oil so that the oil level is between 0 to 5.0 mm (0 to 0.196 in.) from the bottom lip of the No. 2 transfer case plug (for filler) hole.
*a 0 to 5.0 mm (0 to 0.196 in.) NOTE:- When adding oil, pour it slowly.
- Add oil a little at a time, waiting several minutes between each addition of oil.
- Too much or too little oil will lead to transfer problems.
Standard Capacity
0.40 to 0.50 liters (0.43 to 0.52 US qts, 0.36 to 0.44 Imp.qts)
- Wait approximately 5 minutes and check that the oil level has not changed.
- Using a 10 mm straight hexagon wrench, 12 mm hexagon socket wrench and 10 x 12 mm long offset wrench, install a new gasket into the No. 2 transfer case plug (for filler) and then install the No. 2 transfer case plug (for filler).

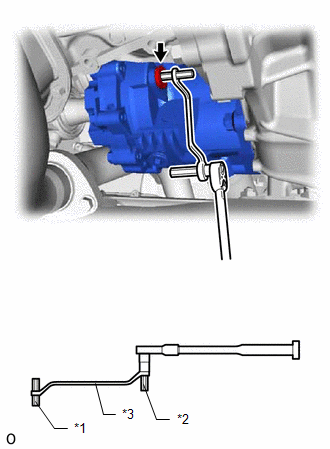

*1 10 mm Straight Hexagon Wrench *2 12 mm Hexagon Socket Wrench *3 10 x 12 mm Long Offset Wrench Torque: 39 N*m (398 kgf*cm, 28 ft.*lbf)
NOTE:- Use the formula to calculate special torque values for situations where a offset wrench is combined with a torque wrench (Refer to PRECAUTION [12/2012 - ] ).
- After adding oil, drive the vehicle and recheck the oil level.
HINT:
When tightening, combine the offset wrench with the torque wrench so that they are in a straight line.
