Removal [12/2012 - 10/2015]: Procedure

  1. REMOVE PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/ Partition Net)

    Refer to PROCEDURE - Step 3

  2. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 4

  3. REMOVE DECK BOARD ASSEMBLY (for Compact Spare Tire)

    Refer to PROCEDURE - Step 5

  4. REMOVE DECK BOARD ASSEMBLY (for Full Size Spare Tire)

    Refer to PROCEDURE - Step 6

  5. REMOVE DECK FLOOR BOX LH

    Refer to PROCEDURE - Step 7

  6. REMOVE REAR FLOOR FINISH PLATE (for Compact Spare Tire)

    Refer to PROCEDURE - Step 8

  7. REMOVE REAR DECK TRIM COVER (for Full Size Spare Tire)

    Refer to PROCEDURE - Step 9

  8. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE WITH REAR NO. 1 FLOOR BOARD
    1. for Compact Spare Tire:

      Refer to PROCEDURE - Step 10

    2. for Full Size Spare Tire:

      Refer to PROCEDURE - Step 11

  9. REMOVE REAR SEAT ASSEMBLY LH

    Refer to REMOVAL [12/2012 - 08/2016]

  10. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 17

  11. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 19

  12. REMOVE SEAT BELT ANCHOR COVER CAP
    GTY374784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

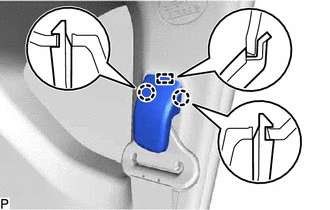

    1. Using a screwdriver, detach the 2 claws and guide to remove the seat belt anchor cover cap.

      HINT:

      Tape the screwdriver tip before use.

  13. DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH

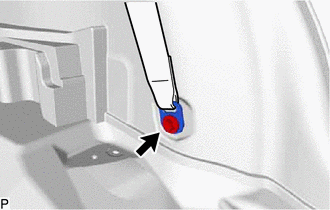

    1. Remove the bolt to disconnect the floor anchor of the rear No. 1 seat outer belt assembly LH.
      GTY383394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

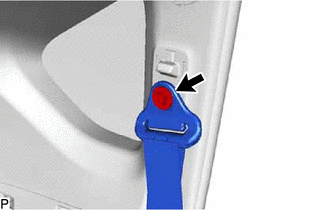

    2. Remove the bolt to disconnect shoulder anchor of the rear No. 1 seat outer belt assembly LH.
      GTY374761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 21

  15. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 24

  16. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH

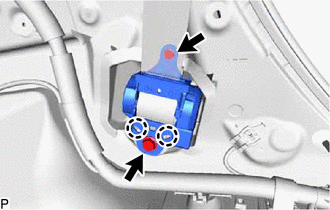

    1. Remove the 2 bolts.
      GTY374758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 claws to remove the rear No. 1 seat outer belt assembly LH.
  17. REMOVE REAR SEAT BELT RETRACTOR COVER LH

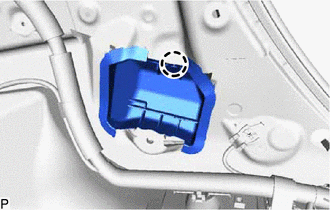

    1. Detach the claw to remove the rear seat belt retractor cover LH.
      GTY374759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
