Components [12/2012 - ]: Illustration

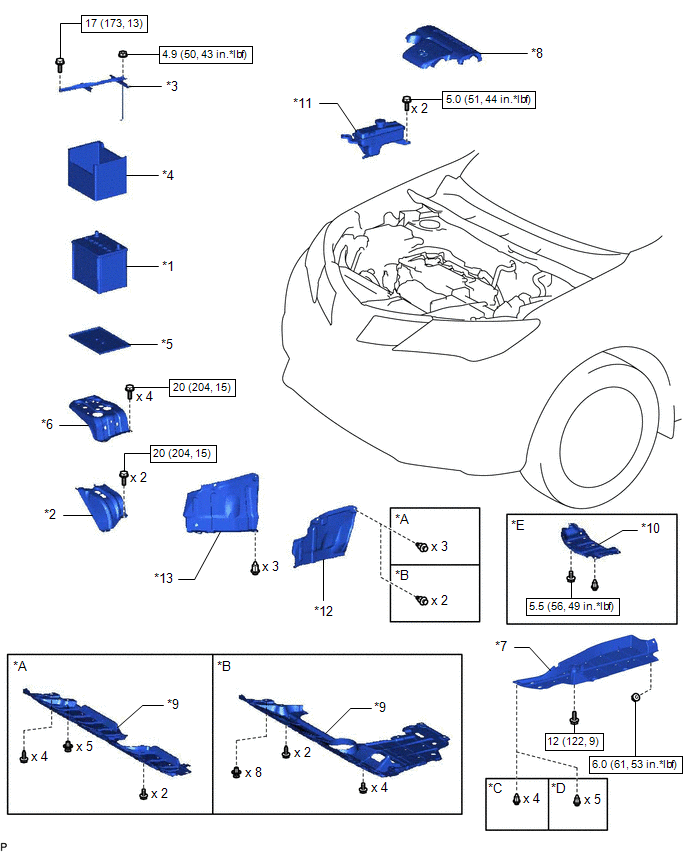

Fig 1: Engine Assembly & Engine Under Cover Replacement Components With Torque Specifications (1 Of 9) [12/2012 - ]
| Callout | Description | Callout | Description |
| *A | for Half Cover Type | *B | for Full Cover Type |
| *C | for Type A | *D | for Type B |
| *E | w/ Cover | - | - |
| *1 | BATTERY | *2 | BATTERY BRACKET REINFORCEMENT |
| *3 | BATTERY CLAMP SUB-ASSEMBLY | *4 | BATTERY INSULATOR |
| *5 | BATTERY TRAY | *6 | FRONT BATTERY BRACKET |
| *7 | FRONT FLOOR COVER | *8 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *9 | NO. 1 ENGINE UNDER COVER | *10 | NO. 2 ENGINE UNDER COVER |
| *11 | RADIATOR RESERVOIR ASSEMBLY | *12 | REAR ENGINE UNDER COVER LH |
| *13 | REAR ENGINE UNDER COVER RH | - | - |
| Specified torque: N*m (kgf*cm, ft.*lbf) | - | - |

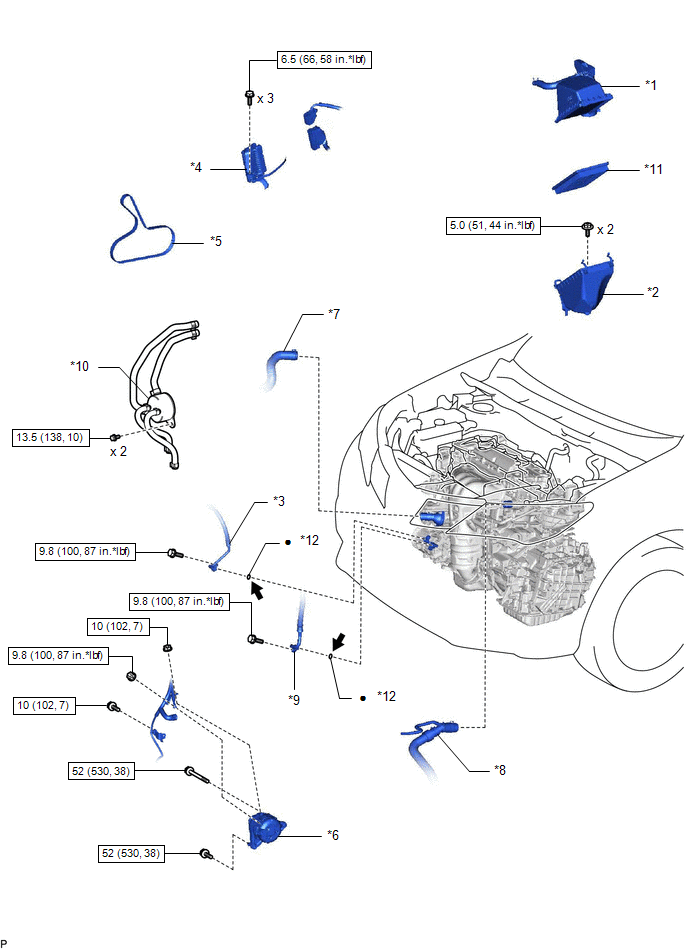

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (2 Of 9) [12/2012 - ]
| Callout | Description | Callout | Description |
| *1 | AIR CLEANER CAP SUB-ASSEMBLY | *2 | AIR CLEANER CASE |
| *3 | DISCHARGE HOSE SUB-ASSEMBLY | *4 | ECM |
| *5 | FAN AND GENERATOR V BELT | *6 | GENERATOR ASSEMBLY |
| *7 | NO. 2 RADIATOR HOSE | *8 | RADIATOR HOSE SUB-ASSEMBLY |
| *9 | SUCTION HOSE SUB-ASSEMBLY | *10 | TRANSMISSION OIL COOLER |
| *11 | AIR CLEANER FILTER ELEMENT | *12 | O-RING |
| Specified torque: N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Compressor oil ND-OIL 8 or equivalent | - | - |

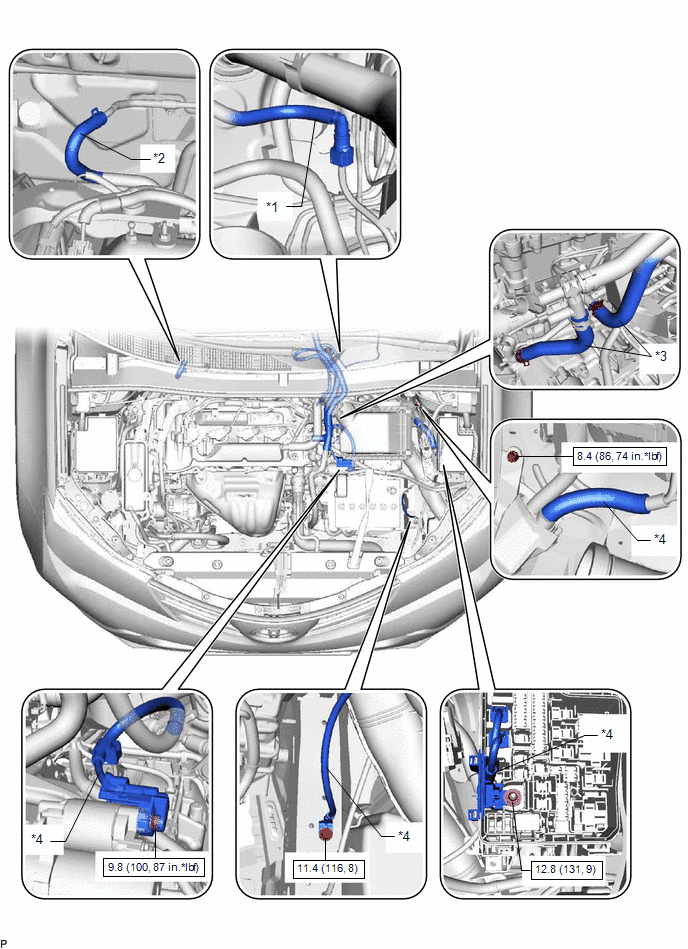

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (3 Of 9) [12/2012 - ]
| Callout | Description | Callout | Description |
| *1 | FUEL TUBE SUB-ASSEMBLY | *2 | VACUUM HOSE |
| *3 | HEATER HOSE | *4 | WIRE HARNESS |
| Specified torque: N*m (kgf*cm, ft.*lbf) | - | - |

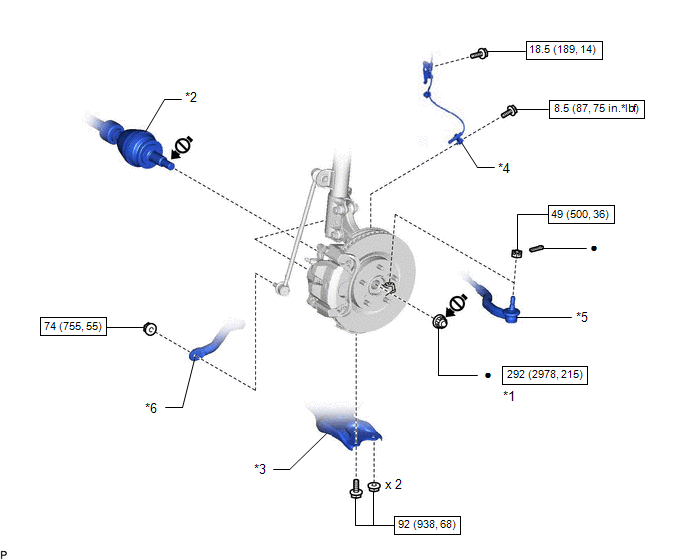

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (4 Of 9) [12/2012 - ]
| Callout | Description | Callout | Description |
| *1 | FRONT AXLE SHAFT NUT LH | *2 | FRONT DRIVE SHAFT ASSEMBLY LH |
| *3 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH | *4 | FRONT SPEED SENSOR LH |
| *5 | TIE ROD END SUB-ASSEMBLY LH | *6 | FRONT STABILIZER BAR |
| Specified torque: N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Do not apply lubricants to the threads | - | - |

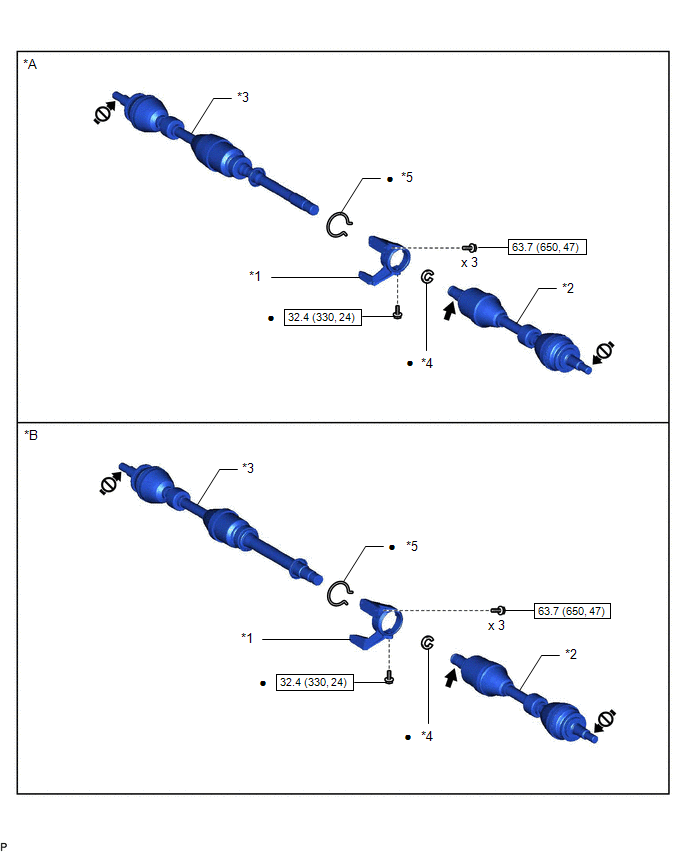

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (5 Of 9) [12/2012 - ]
| Callout | Description | Callout | Description |
| *A | for AWD | *B | for 2WD |
| *1 | DRIVE SHAFT BEARING BRACKET | *2 | FRONT DRIVE SHAFT ASSEMBLY LH |
| *3 | FRONT DRIVE SHAFT ASSEMBLY RH | *4 | FRONT DRIVE SHAFT HOLE SNAP RING LH |
| *5 | DRIVE SHAFT BEARING HOLE SNAP RING | - | - |
| Specified torque: N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| MP grease | Do not apply lubricants to the threads |

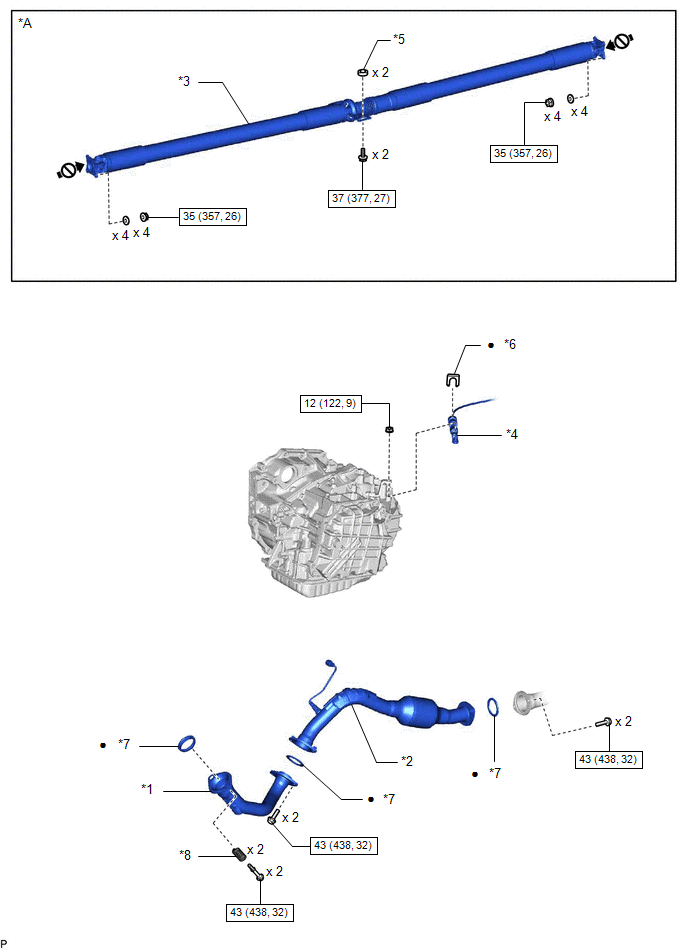

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (6 Of 9) [12/2012 - ]
| Callout | Description | Callout | Description |
| *A | for AWD | - | - |
| *1 | FRONT EXHAUST PIPE SUB-ASSEMBLY | *2 | FRONT NO. 2 EXHAUST PIPE SUB-ASSEMBLY |
| *3 | PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY | *4 | TRANSMISSION CONTROL CABLE ASSEMBLY |
| *5 | ADJUSTING WASHER | *6 | CLIP |
| *7 | GASKET | *8 | COMPRESSION SPRING |
| Specified torque: N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Do not apply lubricants | - | - |

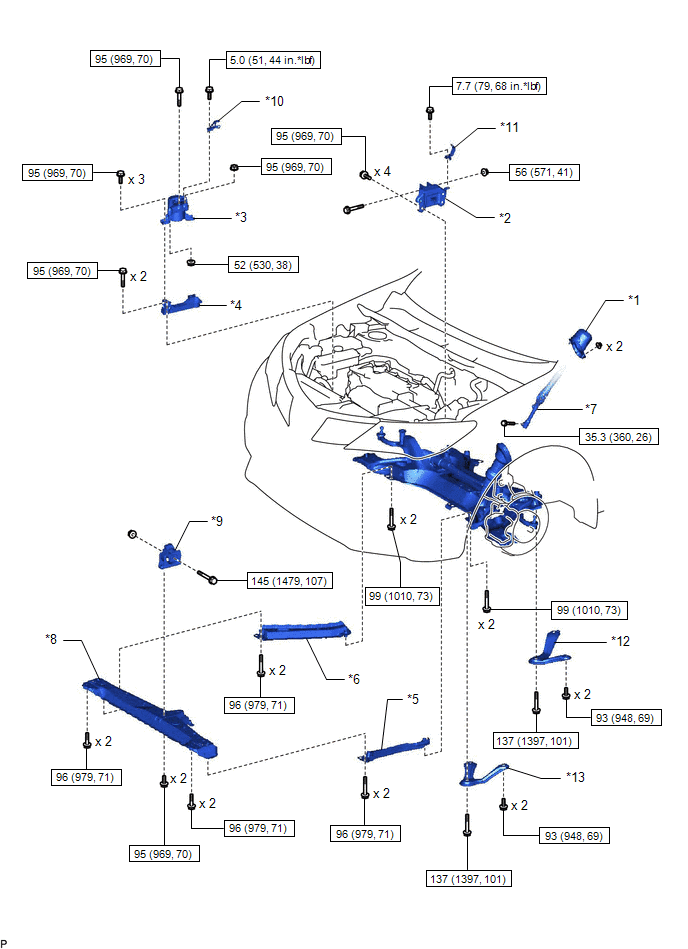

| Callout | Description | Callout | Description |
| *1 | COLUMN HOLE COVER SILENCER SHEET | *2 | ENGINE MOUNTING INSULATOR LH |
| *3 | ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH | *4 | ENGINE MOUNTING SPACER |
| *5 | FRONT SUSPENSION MEMBER REINFORCEMENT LH | *6 | FRONT SUSPENSION MEMBER REINFORCEMENT RH |
| *7 | NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY | *8 | FRONT CROSSMEMBER SUB-ASSEMBLY |
| *9 | FRONT ENGINE MOUNTING INSULATOR | *10 | RADIATOR RESERVOIR BRACKET |
| *11 | WIRE HARNESS CLAMP BRACKET | *12 | FRONT SUSPENSION MEMBER BRACE REAR LH |
| *13 | FRONT SUSPENSION MEMBER BRACE REAR RH | - | - |
| Specified torque: N*m (kgf*cm, ft.*lbf) | - | - |

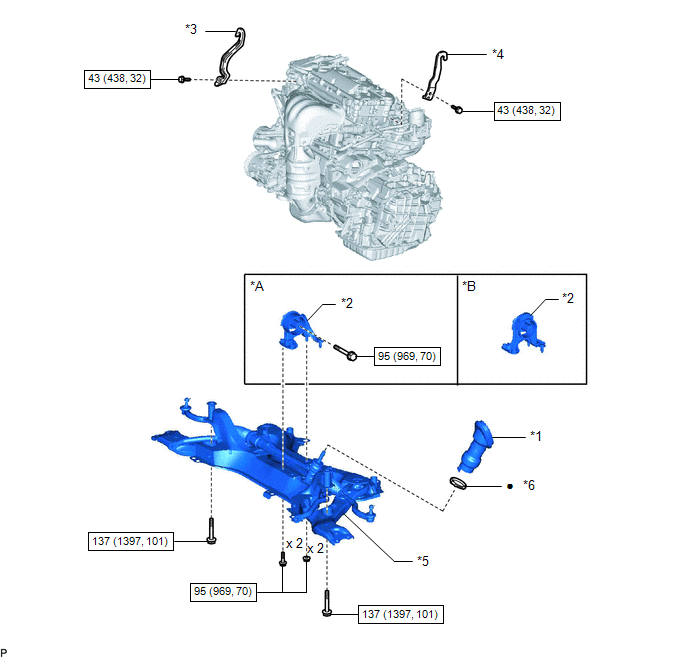

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (8 Of 9) [12/2012 - ]
| Callout | Description | Callout | Description |
| *A | for 2WD | *B | for AWD |
| *1 | NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY | *2 | REAR ENGINE MOUNTING INSULATOR |
| *3 | NO. 1 ENGINE HANGER | *4 | NO. 2 ENGINE HANGER |
| *5 | FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY | *6 | CLAMP |
| Specified torque: N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |

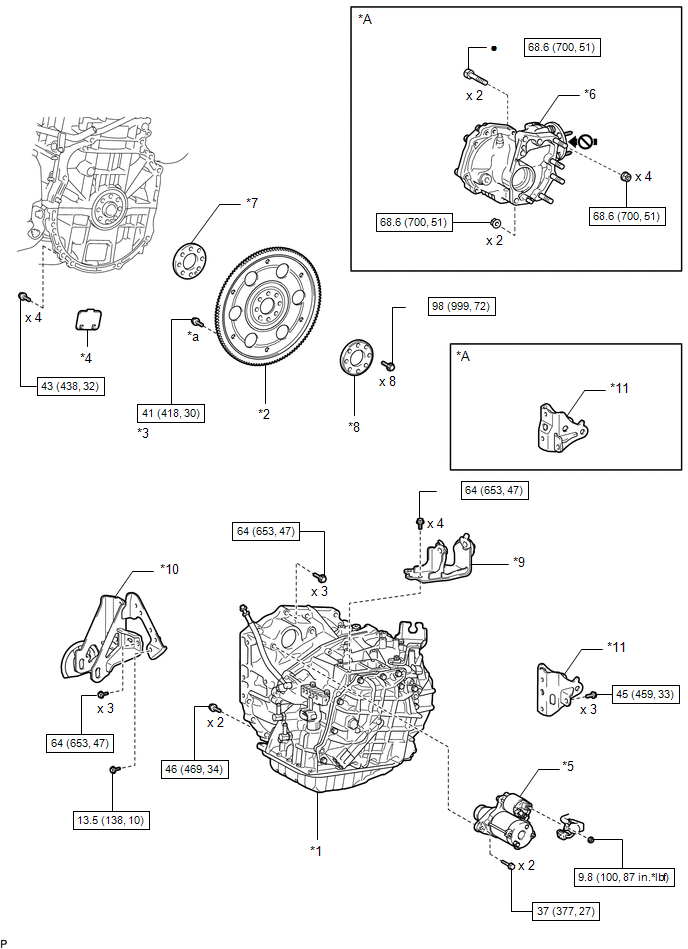

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (9 Of 9) [12/2012 - ]
| Callout | Description | Callout | Description |
| *A | for AWD | - | - |
| *1 | AUTOMATIC TRANSAXLE ASSEMBLY | *2 | DRIVE PLATE AND RING GEAR SUB-ASSEMBLY |
| *3 | DRIVE PLATE AND TORQUE CONVERTER SETTING BOLT | *4 | FLYWHEEL HOUSING UNDER COVER |
| *5 | STARTER ASSEMBLY | *6 | TRANSFER ASSEMBLY |
| *7 | FRONT DRIVE PLATE SPACER | *8 | REAR DRIVE PLATE SPACER |
| *9 | ENGINE MOUNTING BRACKET LH | *10 | FRONT ENGINE MOUNTING BRACKET |
| *11 | REAR ENGINE MOUNTING BRACKET | - | - |
| *a | BLACK: x 1 SILVER: x 5 |
- | - |
| Specified torque: N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| * | Precoated part | Do not apply lubricants to the threads |
