Sliding Roof - Diagnostic Codes & Symptom Tests - (Except Hybrid)
>>
Sliding Roof System
>>
Symptom Tests
>>
Sliding Roof does not Move by Operating Sliding Roof Control Switch [10/2015 - ]
>>
Wiring Diagram

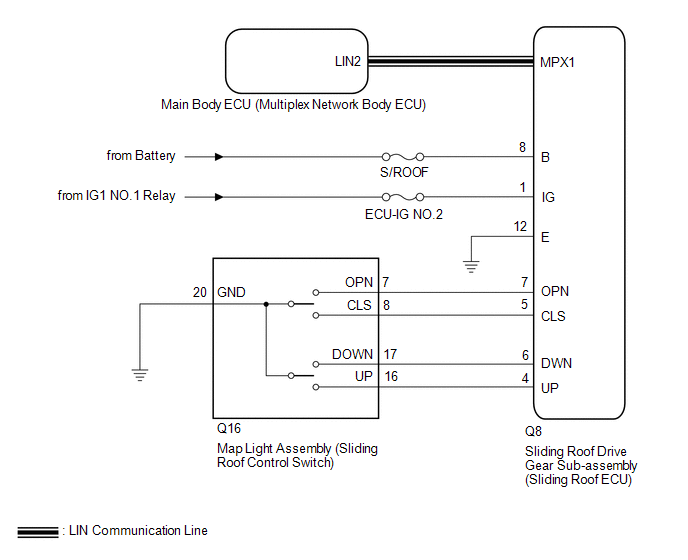

Sliding Roof does not Move by Operating Sliding Roof Control Switch [10/2015 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
