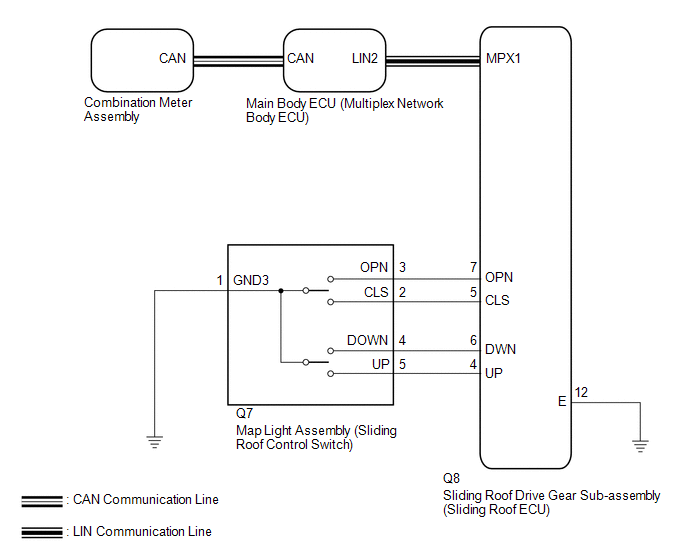

DTC B2341: Sensor (Motor) Failure; DTC B2344: Position Failure [12/2012 - 10/2015]: Wiring Diagram

GTY373004

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
