Removal [12/2012 - 10/2015]: Procedure

  1. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

    Refer to PROCEDURE - Step 16

  2. REMOVE POWER BACK DOOR MAIN SWITCH

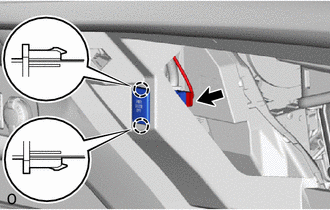

    GTY369846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.
    2. Detach the 2 claws and remove the back door main switch as shown in the illustration.
