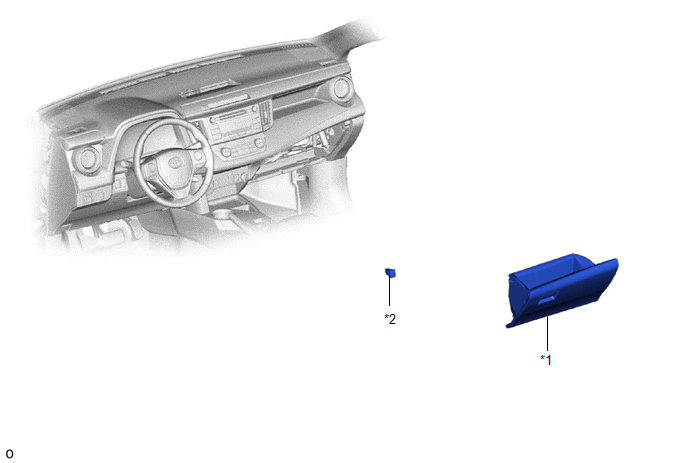

Components [12/2012 - 10/2015]: Illustration

GTY383967

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

GLOVE COMPARTMENT DOOR ASSEMBLY

*2

POWER BACK DOOR MAIN SWITCH
