Components [12/2012 - ]: Illustration

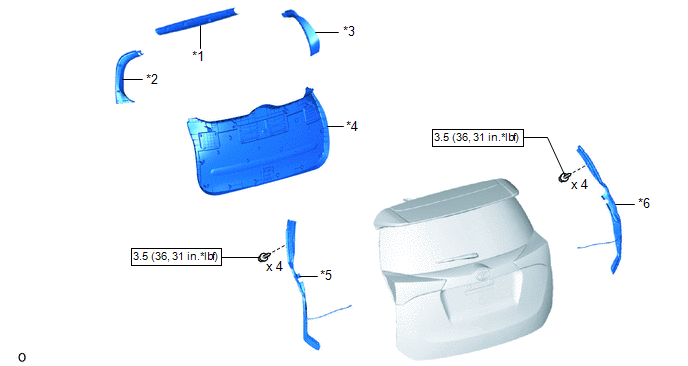

Fig 1: Power Back Door Touch Sensor Components With Torque Specifications (1 of 2) [12/2012 - ]

GTY365286

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BACK DOOR CENTER GARNISH	*2	BACK DOOR SIDE GARNISH LH
*3	BACK DOOR SIDE GARNISH RH	*4	BACK DOOR TRIM BOARD ASSEMBLY
*5	POWER BACK DOOR SENSOR ASSEMBLY LH	*6	POWER BACK DOOR SENSOR ASSEMBLY RH
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

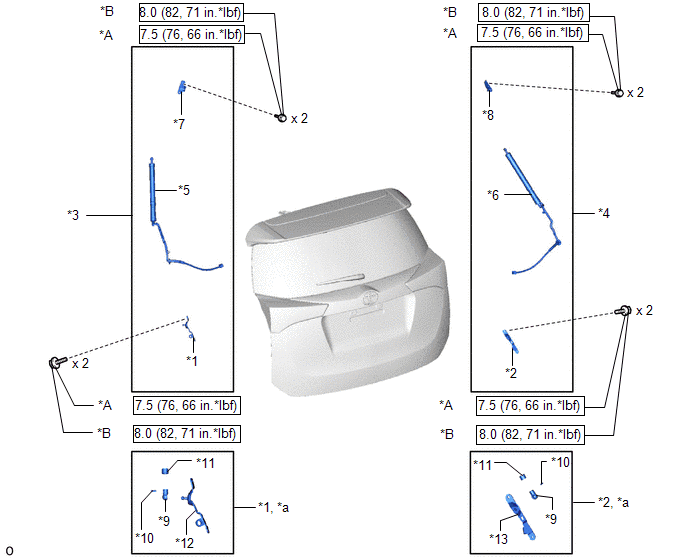

Fig 1: Power Back Door Drive Unit Components With Torque Specifications (2 Of 2) [12/2012 - ]

GTY363971

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	except TMMC Made	*B	for TMMC Made
*1	BACK DOOR DAMPER STAY LOWER BRACKET LH	*2	BACK DOOR DAMPER STAY LOWER BRACKET RH
*3	POWER BACK DOOR UNIT ASSEMBLY SET LH	*4	POWER BACK DOOR UNIT ASSEMBLY SET RH
*5	SPINDLE LH	*6	SPINDLE RH
*7	BACK DOOR DAMPER STAY UPPER BRACKET LH	*8	BACK DOOR DAMPER STAY UPPER BRACKET RH
*9	JOINT	*10	PIN
*11	PROTECTOR COVER	*12	BACK DOOR DAMPER STAY LOWER BRACKET LH
*13	BACK DOOR DAMPER STAY LOWER BRACKET RH	-	-
*a	Perform this procedure when replacing only the back door damper stay lower bracket.	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	*	Precoated part
