On-Vehicle Inspection [12/2012 - ]: Procedure

  1. INSPECT HOOD SUB-ASSEMBLY

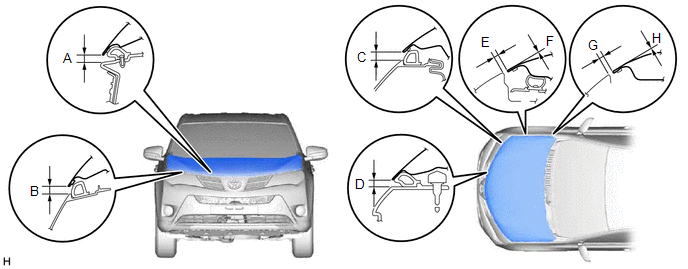

    1. Check that the clearance measurements of areas A to H are within the standard ranges.
      GTY365652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD CLEARANCE

      Area Measurement Area Measurement
      A
      (Reference)      		 4.6 to 9.6 mm (0.181 to 0.378 in.) B
      (Reference)      		 5.3 to 10.3 mm (0.209 to 0.406 in.)
      C
      (Reference)      		 5.4 to 10.4 mm (0.213 to 0.409 in.) D
      (Reference)      		 4.7 to 9.7 mm (0.185 to 0.382 in.)
      E 1.7 to 4.7 mm (0.0669 to 0.185 in.) F -1.5 to 1.5 mm (-0.0591 to 0.0591 in.)
      G 1.7 to 4.7 mm (0.0669 to 0.185 in.) H -1.5 to 1.5 mm (-0.0591 to 0.0591 in.)
