Components [12/2012 - ]: Illustration

Fig 1: Hood Lock Control Cable Assembly Components With Torque Specifications (1 Of 2) [12/2012 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COWL TOP PANEL OUTER SUB-ASSEMBLY	*2	HOOD TO FRONT FENDER SEAL LH
*3	HOOD TO FRONT FENDER SEAL RH	*4	WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

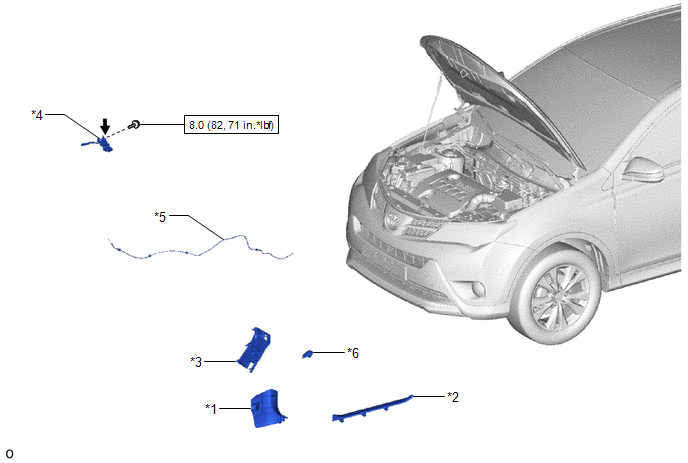

Fig 1: Hood Lock Control Cable Assembly Components With Torque Specifications (2 Of 2) [12/2012 - ]

Callout	Description	Callout	Description
*1	COWL SIDE TRIM BOARD LH	*2	FRONT DOOR SCUFF PLATE LH
*3	FUSE BOX OPENING COVER	*4	HOOD LOCK ASSEMBLY
*5	HOOD LOCK CONTROL CABLE ASSEMBLY	*6	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque		MP grease
