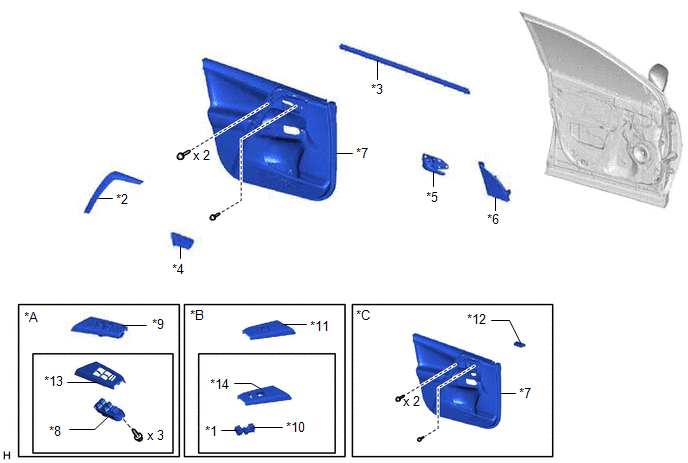

Components [12/2012 - ]: Illustration
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | DOOR CONTROL SWITCH | *2 | FRONT DOOR ASSIST GRIP COVER LH |
| *3 | FRONT DOOR INNER GLASS WEATHERSTRIP LH | *4 | FRONT DOOR INSIDE HANDLE BEZEL PLUG LH |
| *5 | FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY LH | *6 | FRONT DOOR LOWER FRAME BRACKET GARNISH LH |
| *7 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH | *8 | POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY |
| *9 | POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL | *10 | POWER WINDOW REGULATOR SWITCH ASSEMBLY |
| *11 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL | *12 | SEAT MEMORY SWITCH |
| *13 | FRONT UPPER ARMREST BASE PANEL LH | *14 | FRONT UPPER ARMREST BASE PANEL RH |

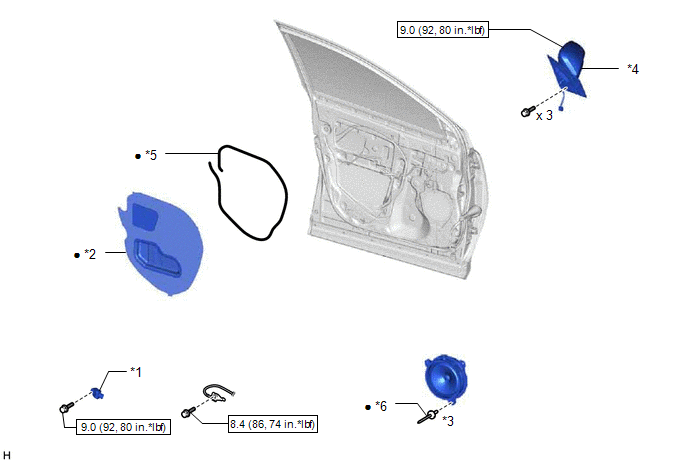

| Callout | Description | Callout | Description |
| *1 | DOOR SIDE AIRBAG SENSOR LH | *2 | FRONT DOOR SERVICE HOLE COVER LH |
| *3 | FRONT NO. 1 SPEAKER ASSEMBLY | *4 | OUTER REAR VIEW MIRROR ASSEMBLY LH |
| *5 | BUTYL TAPE | *6 | RIVET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

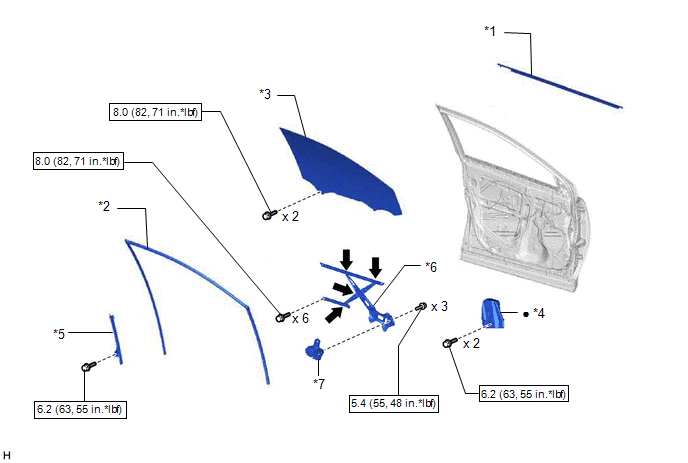

| Callout | Description | Callout | Description |
| *1 | FRONT DOOR BELT MOULDING ASSEMBLY LH | *2 | FRONT DOOR GLASS RUN LH |
| *3 | FRONT DOOR GLASS SUB-ASSEMBLY LH | *4 | FRONT DOOR NO. 2 STIFFENER CUSHION |
| *5 | FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY LH | *6 | FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY LH |
| *7 | POWER WINDOW REGULATOR MOTOR ASSEMBLY LH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |

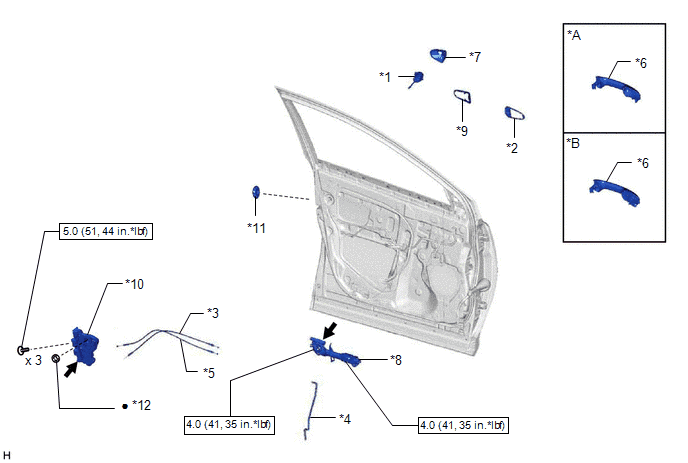

| Callout | Description | Callout | Description |
| *A | w/ Entry and Start System | *B | w/o Entry and Start System |
| *1 | DOOR LOCK CYLINDER LH | *2 | FRONT DOOR FRONT OUTSIDE HANDLE PAD |
| *3 | FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY LH | *4 | FRONT DOOR LOCK OPEN ROD LH |
| *5 | FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH | *6 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH |
| *7 | FRONT DOOR OUTSIDE HANDLE COVER LH | *8 | FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH |
| *9 | FRONT DOOR REAR OUTSIDE HANDLE PAD | *10 | FRONT DOOR WITH MOTOR LOCK ASSEMBLY LH |
| *11 | HOLE PLUG | *12 | DOOR LOCK WIRING HARNESS SEAL |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |

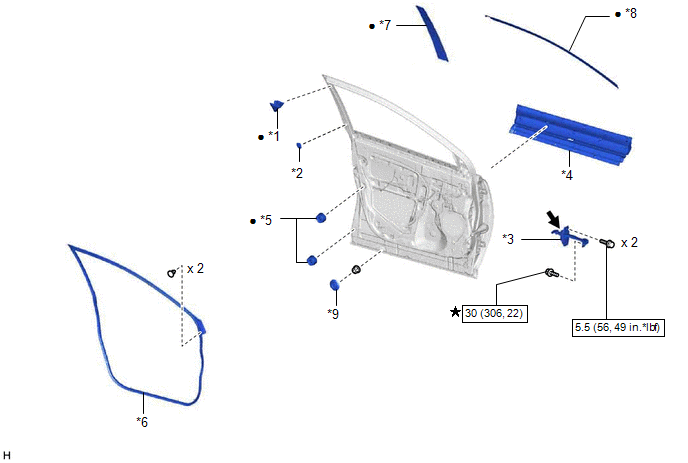

| Callout | Description | Callout | Description |
| *1 | DOOR FRAME GARNISH LH | *2 | DOOR WINDOW FRAME MOULDING CLIP |
| *3 | FRONT DOOR CHECK ASSEMBLY LH | *4 | FRONT DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH |
| *5 | FRONT DOOR PANEL CUSHION | *6 | FRONT DOOR WEATHERSTRIP LH |
| *7 | FRONT DOOR WINDOW REAR FRAME MOULDING LH | *8 | NO. 1 BLACK OUT TAPE LH |
| *9 | HOLE PLUG | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | * | Non-reusable part |
