Adjustment [12/2012 - 08/2016]: Procedure

INSPECT FRONT DOOR PANEL SUB-ASSEMBLY LH

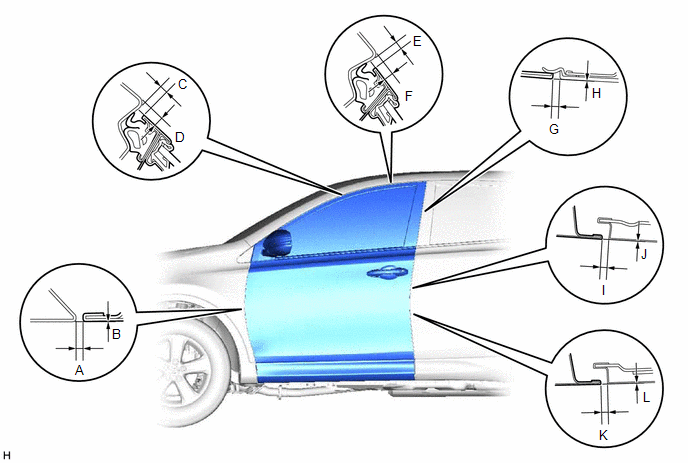

Check that the clearance measurements of areas A to L are within the standard ranges.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
A	2.2 to 5.2 mm (0.0866 to 0.205 in.)	B	-1.5 to 1.5 mm (0.0591 to 0.0591 in.)
C	3.7 to 6.7 mm (0.146 to 0.264 in.)	D	4.5 to 7.5 mm (0.177 to 0.295 in.)
E	3.7 to 6.7 mm (0.146 to 0.264 in.)	F	4.2 to 7.2 mm (0.165 to 0.283 in.)
G (Reference)	2.5 to 6.5 mm (0.0984 to 0.259 in.)	H	-2.0 to 2.0 mm (-0.0787 to 0.0787 in.)
I	2.9 to 5.3 mm (0.114 to 0.209 in.)	J	-1.2 to 1.2 mm (-0.0472 to 0.0472 in.)
K	2.9 to 5.3 mm (0.114 to 0.209 in.)	L	-1.2 to 1.2 mm (-0.0472 to 0.0472 in.)

ADJUST FRONT DOOR PANEL SUB-ASSEMBLY LH

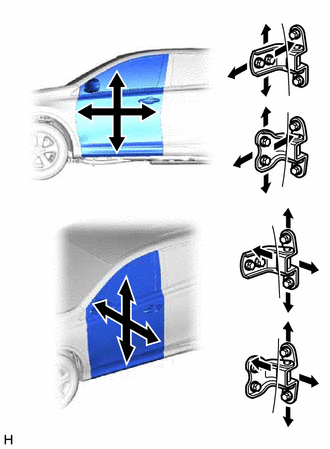

Using SST, loosen the hinge bolts on the body and adjust the door position.

SST: 09812-00010

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the hinge bolts on the body after the adjustment.
Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)
Loosen the hinge bolts on the door and adjust the door position.
Tighten the hinge bolts on the door after the adjustment.
Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

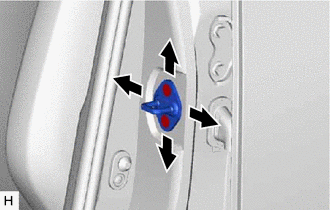

Using a T40 "TORX" socket, adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a plastic-faced hammer.

Using a T40 "TORX" socket, tighten the striker mounting screws after the adjustment.
Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Side Airbag)
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [12/2012 - 10/2015] , or refer to INITIALIZATION [10/2015 - 08/2016]
CHECK SRS WARNING LIGHT (w/ Side Airbag)
Refer to DIAGNOSIS SYSTEM [12/2012 - ]
