Components [10/2015 - ]: Illustration

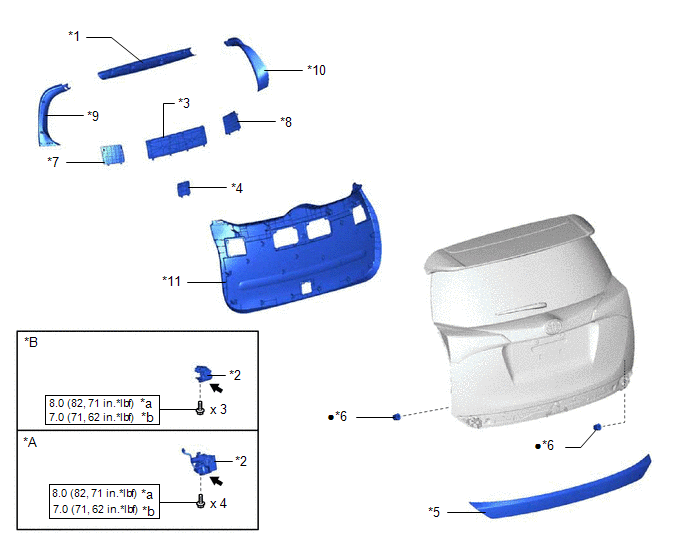

| Callout | Description | Callout | Description |
| *A | w/ Power Back Door | *B | w/o Power Back Door |
| *1 | BACK DOOR CENTER GARNISH | *2 | BACK DOOR LOCK ASSEMBLY |
| *3 | BACK DOOR NO. 1 SERVICE HOLE COVER | *4 | BACK DOOR NO. 2 SERVICE HOLE COVER |
| *5 | BACK DOOR OUTSIDE LOWER GARNISH SUB-ASSEMBLY | *6 | BACK DOOR PANEL CUSHION |
| *7 | BACK DOOR SERVICE HOLE COVER LH | *8 | BACK DOOR SERVICE HOLE COVER RH |
| *9 | BACK DOOR SIDE GARNISH LH | *10 | BACK DOOR SIDE GARNISH RH |
| *11 | BACK DOOR TRIM BOARD ASSEMBLY | - | - |
| *a | for TMMC Made | *b | except TMMC Made |
| N*m (kgf*cm, ft.*lbf): Specified torque | MP grease |

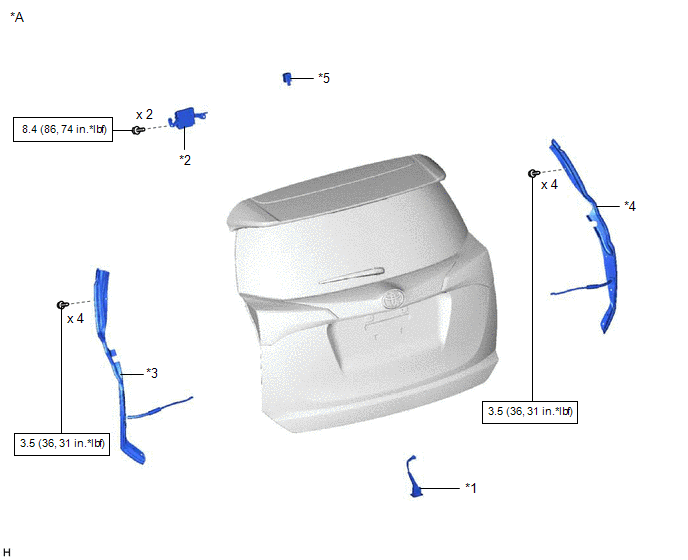

| Callout | Description | Callout | Description |
| *A | w/ Power Back Door | - | - |
| *1 | DOOR CONTROL SWITCH ASSEMBLY | *2 | MULTIPLEX NETWORK DOOR ECU |
| *3 | POWER BACK DOOR SENSOR ASSEMBLY LH | *4 | POWER BACK DOOR SENSOR ASSEMBLY RH |
| *5 | WIRELESS DOOR LOCK BUZZER | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| Callout | Description | Callout | Description |
| *1 | BACK DOOR GLASS CHANNEL LH | *2 | BACK DOOR GLASS CHANNEL RH |
| *3 | NO. 1 REAR WIPER LINK PIVOT WASHER | *4 | REAR SPOILER |
| *5 | REAR WASHER NOZZLE SUB-ASSEMBLY | *6 | REAR WIPER ARM AND BLADE ASSEMBLY |
| *7 | REAR WIPER ARM COVER | *8 | REAR WIPER MOTOR ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |

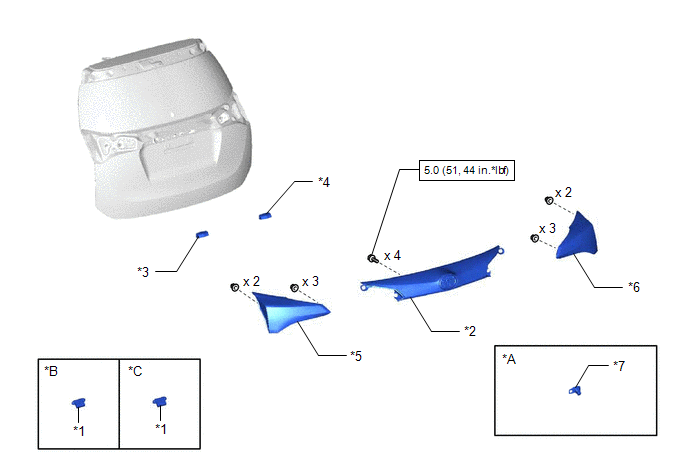

| Callout | Description | Callout | Description |
| *A | w/ Television Camera | *B | w/ Entry and Start System |
| *C | w/o Entry and Start System | - | - |
| *1 | BACK DOOR OPENER SWITCH ASSEMBLY | *2 | BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY |
| *3 | LICENSE PLATE LIGHT ASSEMBLY LH | *4 | LICENSE PLATE LIGHT ASSEMBLY RH |
| *5 | REAR LIGHT ASSEMBLY LH | *6 | REAR LIGHT ASSEMBLY RH |
| *7 | TELEVISION CAMERA ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

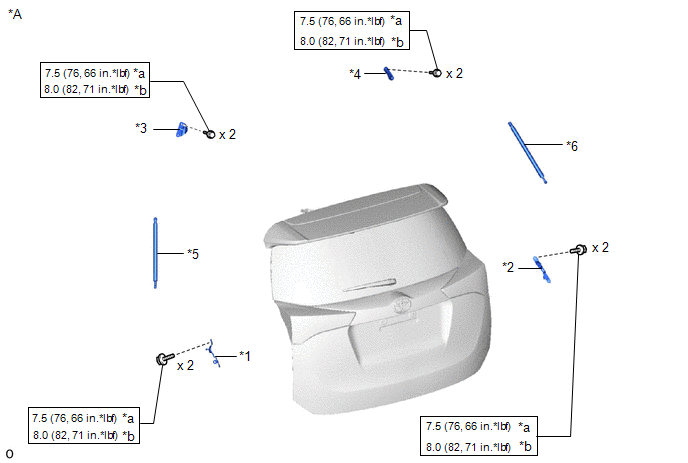

| Callout | Description | Callout | Description |
| *A | w/o Power Back Door | - | - |
| *1 | BACK DOOR DAMPER STAY LOWER BRACKET LH | *2 | BACK DOOR DAMPER STAY LOWER BRACKET RH |
| *3 | BACK DOOR DAMPER STAY UPPER BRACKET LH | *4 | BACK DOOR DAMPER STAY UPPER BRACKET RH |
| *5 | BACK DOOR STAY ASSEMBLY LH | *6 | BACK DOOR STAY ASSEMBLY RH |
| *a | except TMMC Made | *b | for TMMC Made |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | Precoated part |

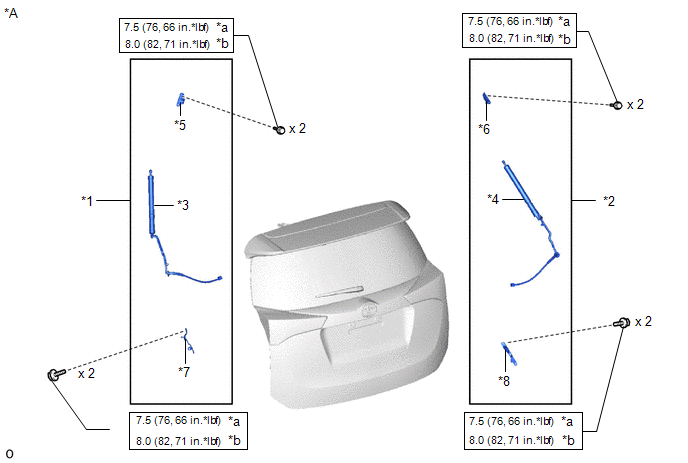

| Callout | Description | Callout | Description |
| *A | w/ Power Back Door | - | - |
| *1 | POWER BACK DOOR UNIT ASSEMBLY SET LH | *2 | POWER BACK DOOR UNIT ASSEMBLY SET RH |
| *3 | SPINDLE LH | *4 | SPINDLE RH |
| *5 | BACK DOOR DAMPER STAY UPPER BRACKET LH | *6 | BACK DOOR DAMPER STAY UPPER BRACKET RH |
| *7 | BACK DOOR DAMPER STAY LOWER BRACKET LH | *8 | BACK DOOR DAMPER STAY LOWER BRACKET RH |
| *a | except TMMC Made | *b | for TMMC Made |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | Precoated part |
