Removal [12/2012 - 10/2015]: Procedure
- REMOVE BACK DOOR CENTER GARNISH
See step 1
- REMOVE BACK DOOR SIDE GARNISH LH
See step 2
- REMOVE BACK DOOR SIDE GARNISH RH
HINT:
Use the same procedure described for the LH side.
- REMOVE BACK DOOR TRIM BOARD ASSEMBLY
See step 4
- REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)
See step 5
- REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)
HINT:
Use the same procedure described for the LH side.
- REMOVE REAR LIGHT ASSEMBLY LH
Refer to PROCEDURE - Step 6
- REMOVE REAR LIGHT ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.
- REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
Refer to PROCEDURE - Step 9

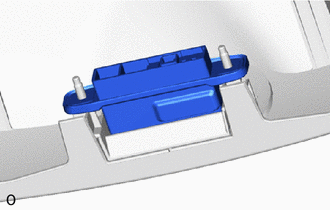

- REMOVE BACK DOOR OPENER SWITCH ASSEMBLY
