Removal [10/2015 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    See step  1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    See step  2

  3. REMOVE BACK DOOR SIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    See step  4

  5. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)

    See step  5

  6. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)

    HINT:

    Use the same procedure described for the LH side.

  7. REMOVE REAR LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  8. REMOVE REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  9. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY
    1. Disconnect the connector.

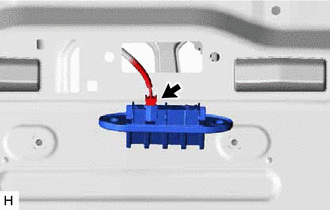

      GTY568842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the back door opener switch assembly.
