Removal [10/2015 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    See step  1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    See step  2

  3. REMOVE BACK DOOR SIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    See step  4

  5. REMOVE MULTIPLEX NETWORK DOOR ECU

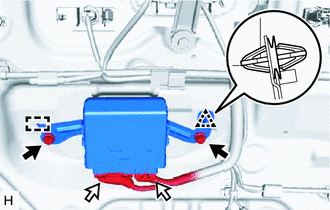

    1. Disconnect the 2 connectors.
      GTY579745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    2. Remove the 2 bolts.
    3. Detach the clip and guide and remove the multiplex network door ECU.
