Components [12/2012 - 10/2015]: Illustration

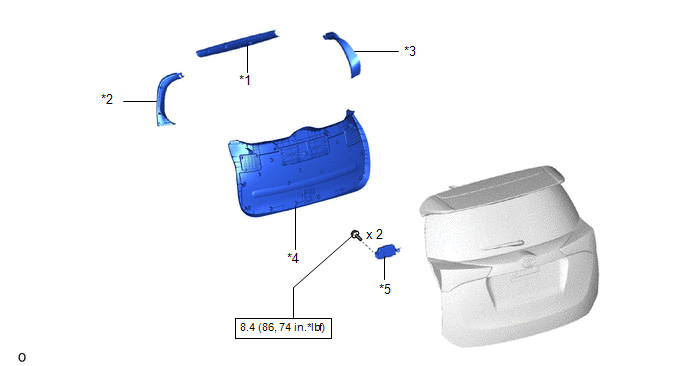

Fig 1: Back Door Closer ECU Components With Torque Specifications [12/2012 - 10/2015]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BACK DOOR CENTER GARNISH	*2	BACK DOOR SIDE GARNISH LH
*3	BACK DOOR SIDE GARNISH RH	*4	BACK DOOR TRIM BOARD ASSEMBLY
*5	MULTIPLEX NETWORK DOOR ECU	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
