Removal [10/2015 - ]: Procedure

  1. REMOVE BACK DOOR GARNISH CENTER

    Refer to PROCEDURE - Step 1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Refer to PROCEDURE - Step 3

  4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE BACK DOOR LOCK ASSEMBLY
    1. w/ Power Back Door:

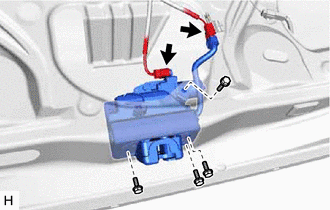

      GTY568846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 2 connectors.
      2. Remove the 4 bolts and remove the back door lock assembly.
    2. w/o Power Back Door:

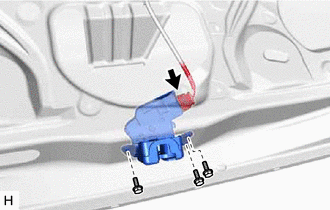

      GTY568844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
      2. Remove the 3 bolts and back door lock assembly.
