Removal [12/2012 - ]: Procedure

HINT:

Use the same procedure for both washer nozzle sub-assemblies.

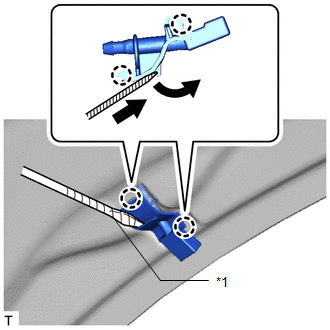

1. Using a screwdriver, detach the 2 claws and remove the washer nozzle sub-assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Protective Tape

   NOTE:

   Be careful not to damage the windshield.

   HINT:

   Tape the screwdriver tip before use.

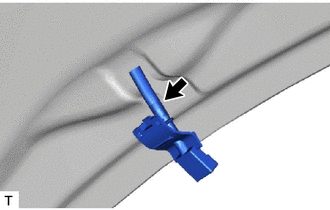

2. Disconnect the washer nozzle sub-assembly from the washer hose.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Washer nozzle sub-assemblies cannot be reused.
