Installation [12/2012 - ]: Procedure

  1. INSTALL WASHER NOZZLE SUB-ASSEMBLY
    1. Connect a new washer nozzle sub-assembly to the washer hose.

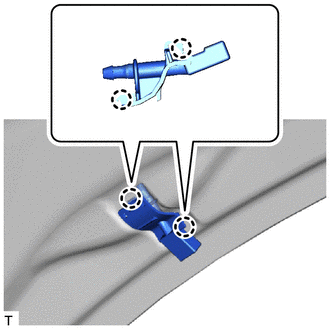

    2. Attach the 2 claws to install the washer nozzle sub-assembly.
      GTY372265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
