Removal [12/2012 - ]: Procedure

  1. REMOVE REAR SPOILER

    Refer to REMOVAL [12/2012 - ]

  2. REMOVE REAR WASHER HOSE GROMMET
    1. Disconnect the washer hose and remove the washer grommet.

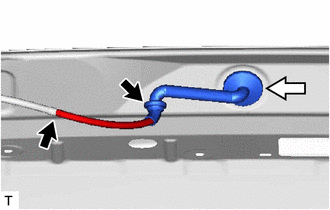

      GTY372258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR WASHER NOZZLE SUB-ASSEMBLY
    1. Using a screwdriver, detach the 2 claws and remove the rear washer nozzle sub-assembly.

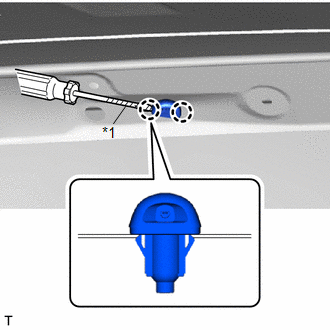

      GTY362848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape

      HINT:

      Tape the screwdriver tip before use.

    2. Disconnect the washer hose.
      GTY372254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
