Removal [12/2012 - 10/2015]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2

  3. REMOVE BACK DOOR SIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  6. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  7. REMOVE REAR LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  8. REMOVE REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  9. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. REMOVE TELEVISION CAMERA ASSEMBLY

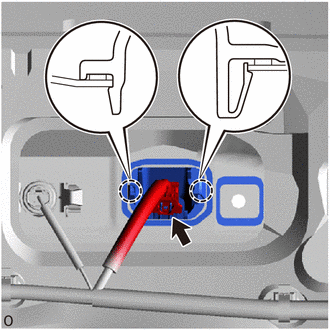

    1. Disconnect the connector.
      GTY370303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 claws and remove the television camera assembly.
