Removal [10/2015 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [10/2015 - ]

  2. REMOVE TELEVISION CAMERA ASSEMBLY

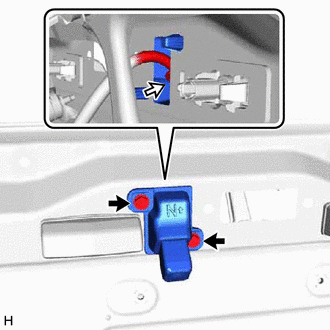

    1. GTY550358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Connector

      Remove the 2 screws.

    2. Disconnect the connector.
    3. Using pliers, grip the claws of the 2 grommets and slide the 2 grommets to remove the television camera assembly as shown in the illustration.

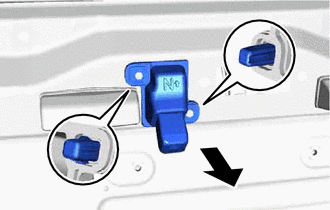

      GTY570163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
